Plasma Cutting Kit 40AMP With Helmet Electrodes and Cutting Tips

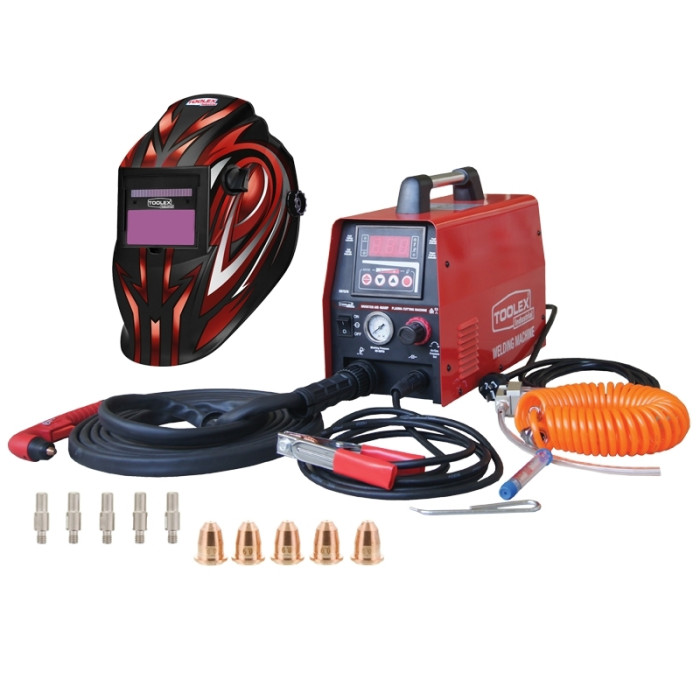

TOOLEX PLASMA CUTTING KIT

Kit Contents:

• Toolex 40Amp Plasma Cutter
• S45 Trafimet Contact Start Plasma Cutting Torch
• Ground cable with heavy duty Earth Clamp
• Toolex Auto-Pro Welding Helmet
• Toolex 0.90mm Plasma Cutting Tips
• Toolex 5-Pack Plasma Cutting Electrodes

Toolex 40Amp Plasma Cutter

Summary:

• Toolex Industrial 40AMP@60% Duty Cycle Inverter Air Plasma Cutter. Features the Latest Version of IGBT Inverter Technology.
• Welder includes S45 Trafimet Contact Start Plasma Cutting Torch and ground cable with heavy duty Earth Clamp.
• Pre-Flow Check & Post Flow Cooling and includes pilot arc function for grid work-piece cutting.
• Unit features full digital control and includes an In-built pressure regulator.
• Includes Thermal & Voltage Overload Protection. Generator Compatible at a recommended minimum 7KVA.

Specifications:

• Output Current Range : 15-40amp
• Input Power : 230-240Volt 1 Phase
• Duty Cycle : 60%@40amp/96V
• Duty Cycle : 100%@31amp/92.4V
• Cutting Range Clean : 16mm Steel 12mm Aluminium
• Efficency : 85%
• Machine Dimesion : 400x185x320mm
• Machine Weight : 13kg

Toolex Auto-Pro Welding Helmet

Overview:

• Trade quality automatic welding helmet
• Automatic helmet featuring an externally adjustable shade control from shade 9 to 13 with grinding mode switch.
• Easy to operate with the user given greater control over the reaction time and shading.
• Comes painted in a durable finish in a smart Red Celtic pattern.

Specifications:

• Viewing Area Size : 97.00 * 62.00 mm
• Cartridge Size : 133.00 * 114.00 * 9.00 mm
• Lens Shade : DIN9-13
• Variable Light Shade : Shade DIN3.5 Shade Control
• Internal Sensors : 4 On/Off
• Automatic Power Supply : Solar cells, Battery Replaceable 2xCR2450
• Switch Time : 1/25,000s
• Sensitivity Control : Adjust By Infinite Dial Knob
• Delay Time Dark To Light : 0.1-1.0s By Infinite Dial Knob
• Low Tig AMP's Rated : ≥2 amps /DC; ≥ 2 amps /AC
• Grind Mode : Yes
• Operating Temperature : -10℃~＋55℃
• Storing Temperature : -20℃~＋70℃ Ideal For Use In Stick Welding (DC&AC);  Excellent For Low Ampherage TIG( DC,DC Pulse);TIG AC(Pulse); MIG/MAG ;MIG/MAG Pulse; Plasma Cutting/ Welding; Grinding;Not for Laser Welding or Oxyacetylene Welding/Cutting
