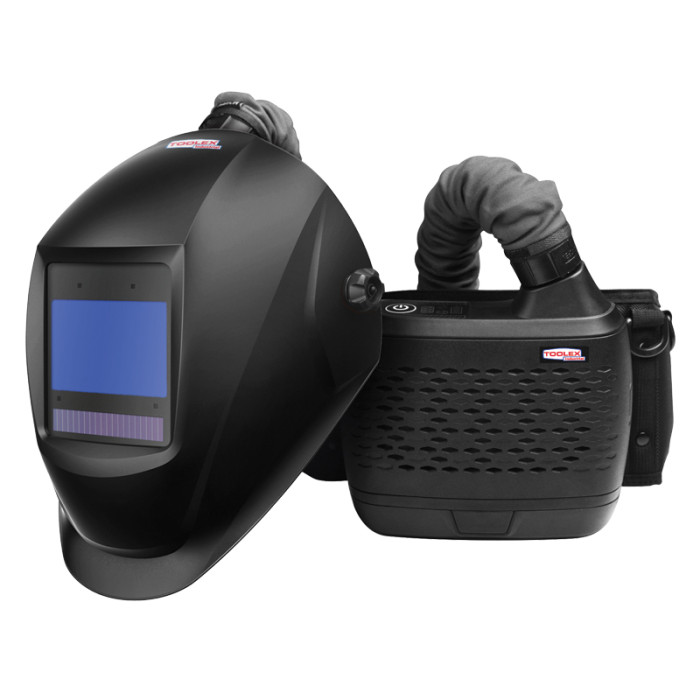

Air Fed Welding Helmet PAPR Freflow iMUX Series

Toolex 511901 TECMEN Air Fed Welding Helmet PAPR Freflow iMUX Series

Automatic Welding Helmet iMUX Series ADF820SG iMUX

ADF Features:

• Optical Class 1/1/1/2 - Top quality ADF lens, optical class: 1/1/1/2, which can provide ultra-clear view and best protection for users’ eyes.
• Exclusive High Resolution Lens Technology - High resolution lens technology brings high-definition visual experience, increases eyes comfort, and reduces fatigue greatly, especially for long time welding job in Industrial field.
• Shade Range 9-13 - For most welding/cutting applications, also including grinding mode.
• Ultra Large View 97x62mm - With 4 independent sensors, allows to weld in complex environment.
• Pivot Headgear Design - Adjustable pivot headgear, well-balanced design, maximum comfortable feelings, lock function in upright state.

ADF Specifications:

• ADF Model - ADF815SG iMUX
• Optical Class - 1 / 1 / 1 / 2
• Viewing Area - 97 x 62mm (3.82" x 2.44")
• Cartridge Size - 133 x 114 x 9mm (5.25" x 4.50" x 0.35")
• Arc Sensor - 4
• Light State - DIN 3.5
• Dark State - 9 ~ 13
• Shade Control - Internal, Variable Shade
• Power On / Off - Automatic
• Sensitivitiy Control - Low - High, by infinitely dial knob
• UV / IR Protection - Up to Shae DIN16 at all times
• Power Supply - Solar cell. Battery replaceable. (2x CR2450 lithium battery) *see battery warnings below
• Battery Duratiom - 4000 hours
• Switching Time - 1/25,000s from Light to Dark
• Dark to Light - 0.1 ~1.0s by infinitely dial knob
• Low Amperage TIG rated - ≥ 2 amps (DC); ≥ 2 amps (AC)
• Grinding - Yes
• Low Battery Indicator - Yes
• Battery Capacity Test - Yes
• Operating Temp - -10ºC ~ +55ºC
• Storing Temp - -20ºC ~ +70ºC
• Helmet Material - High Impact Resistance Nylon

FreFlow Series Intelligent Air Supply

Respirator Features:

• Eye/Face/Respiratory Protection - High quality welding helmet combined with powered air purifying respirator system, protecting the welder from arc radiation, spatter, dust, pollutants, fine particles as well as other contaminants.
• Auto-alarm System - Flashing indicator, bleeping sound together with vibrating blower to ensure safety.
• Intelligent Air Supply - Respirator will self-adjust the flow rate according to the blockage of the filter automatically.
• Real-time Display Indicator - Filter status/airflow rate/battery capacity indicator, real-time monitoring and displaying.

Respirator Specifications:

• Airflow Rate -
  • Manufacturer's Minimum Design Flow Rate: 165+lpm (5.8+cfm)
  • Low Speed: 170+lmp (6+cfm)
  • High Speed: 210+lmp (7.4+cfm)
• Fast-charging Stardard Battery -
  • Battery Type: Rechargable Li-ion Battery
  • Battery Duration: 9hr (Low speed) / 5.6hr (High speed)
  • Battery Charge Time: 1 hour
  • Battery Life: ≥ 500 charges
• Fliter -
  • Filter Efficiency: > 99.97%
  • Alarms: Visible, Audible & Vibrate
• Temperature -
  • Operating Temperature: -5°C to 55°C
  • Storage Temperature: -10°C to 55°C
• Relative Humidity (R.H) -
  • Operating: < 90%
  • Storage: < 85%
• Weight - 1020g (Blower Unit + Fast-Charging Standard Battery)

WARNING - KEEP BUTTON BATTERIES OUT OF REACH OF CHILDREN

• Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus.
• Never allow children to replace button batteries of any device.
• If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (Australia) for fast, expert advice.
• Regularly examine devices and make sure the battery compartment is correctly secured, e.g. that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.
• Tell others about the risk associated with button batteries and how to keep their children safe.
