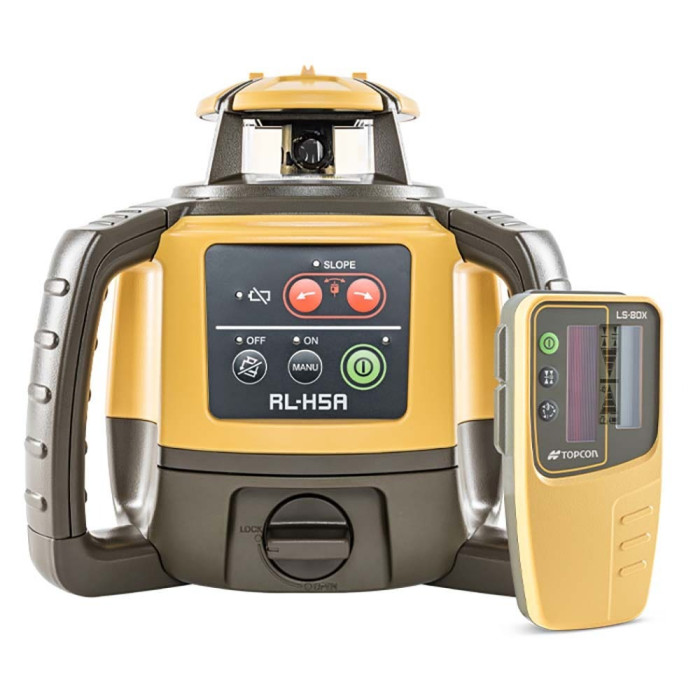

Rotary Laser RL-H5A with Slope Rechargeable with Standard LS-80X Receiver

$2,255.00
SKU
1021200-46

Designed for a wide variety of applications, the RL-H5 series is the next generation of rotating lasers from Topcon. The RL-H5A next generation self-levelling rotating laser is an easy-to-use, long-range high accuracy laser with a long battery life and all-weather dependability. With electronic self-leveling, you press the power button and go right to work in seconds. If the RL-H5A gets disturbed on the job it re-levels itself automatically. The self-leveling motors are accurate to ±10 arc seconds. The RL-H5A excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover a 800m (diameter) jobsite. This rotating laser level gives you the option of 100 hours of continuous usage with D cell (4 x) batteries (included), or 60 hours with the optional rechargeable (Ni-MH) battery pack. The RL-H5A is “jobsite tough” and with its IP66 rating, the unit can withstand dust, a sudden shower and even torrential rainfall. Topcon stands behind this reliable and accurate laser with a 5 year warranty.



Topcon 1021200-46 Rotary Laser RL-H5A with Slope Rechargeable with Standard LS-80X Receiver



Features:

  • Working Range 800m
  • Accuracy ±1.5mm @ 30m
  • Manual grade change to 5%
  • Dust/Water Rating IP66
  • LS-80X Hand Receiver
  • Rechargeable NIMH Battery

Specifications:

  • Accuracy: H: ±10 arc seconds
  • Self-Levelling Range: Horizontal ±5°
  • Working Area: 800m
  • Rotation Speed: 600 rpm
  • Dust/Water Rating: IP66
  • Operating Time: NIMH Rechargable (60 hours)
  • Operating Temperature: -20°C to 50°C
  • LS-80X Hand Receiver (±1 & ±2mm)
More Information
Model Number1021200-46
BrandTopcon
