Rotary Laser Receiver Magnetic Machine Mount Wireless Bluetooth LS-B20W - Red
$3,184.01
SKU
1063525-04
Barcode
9345954005406
The LS-B Series of machine-mounted laser sensors are affordable grade indicate systems designed to improve grading, excavating production, and accuracy.
Fast setup and easy-to-use, these depth control sensors can be mounted to your earthmoving machines in minutes. Attach any of the LS sensors to a piece of equipment; turn it on, bench in, and go to work. No more waiting for a grade checker or jumping off your machine to check your own grade. Topcon's laser sensors you know if you are above, below, or on-grade all the time.
The advanced model, LS-B10W, uses built-in wireless connectivity to provide indicator information to the RD-100W in-cab remote display. This puts grade information where it is needed most — directly in front of the operator.

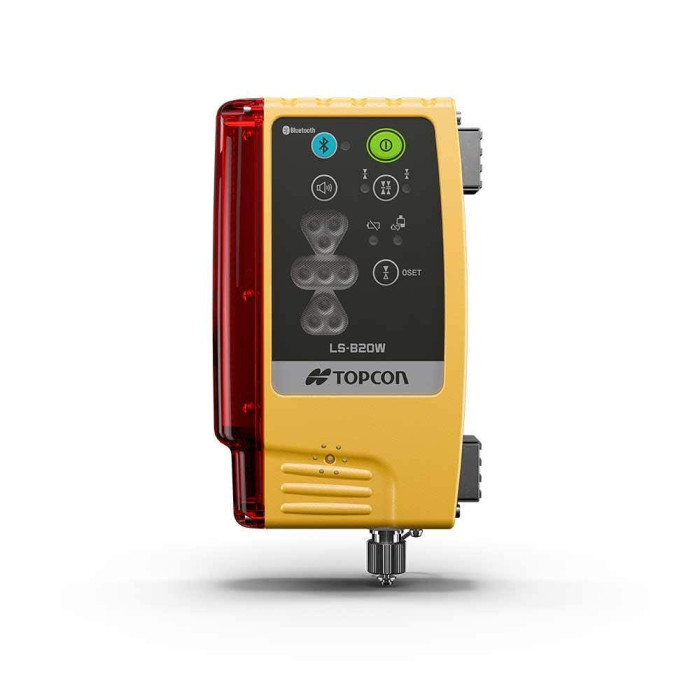

TOPCON LS-B20W (1063525-04) Rotary Laser Receiver Magnetic Machine Mount Wireless Bluetooth - Red
Features:
- 270º laser detection angle
- Topcon wireless communication
- Up to 700m Detection Range
- Large LED indicators
- Display screen
- Compatible with Topcon control systems
- Magnetic Feet
Specifications:
- Detective range: 120mm
- Detective angle: 270° (ON GRADE)
- Detective precision:
- Mode1±2mm
- Mode2±6mm
- Mode3±12mm
- Mode4±30mm
- Detectable laser wavelength: 633~780nm
- Laser Detecting Range (diameter): More than 700m
- Wireless Communication: 20m (May vary due to environment)
- Power source: 3 x 'AA' Dry-Cell Batteries
- Continuous operating time: Approximately 20 hours(Dry Cells)
- Operating temperature: -20°C~+50°C
- Waterproof: IP66
Includes:
- 1 x LS-B10W Receiver
- 3 x AA Dry Batteries
- 1 x Instruction Manual
| Model Number | 1063525-04 |
|---|---|
| gtin | 9345954005406 |
| Brand | Topcon |
