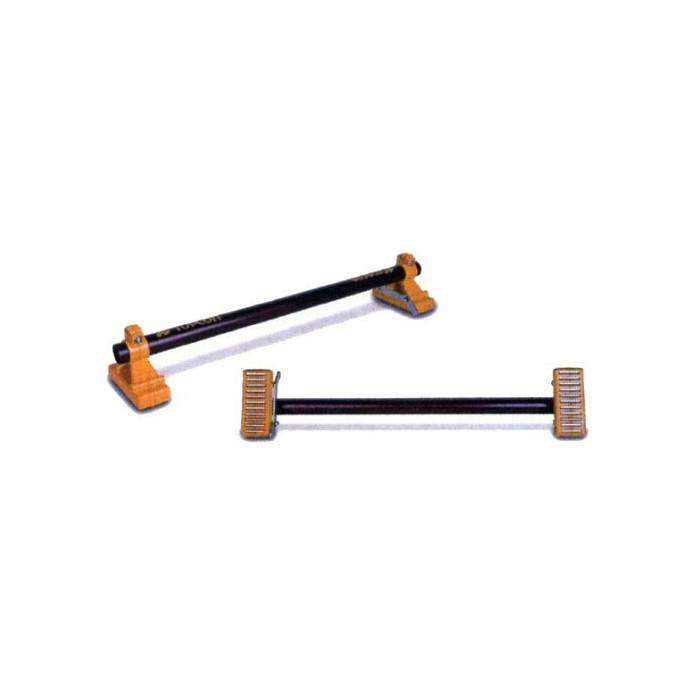

Magnetic Pole Mount LS-B100

Topcon Magnetic Pole Mount (suit LS-B Series) 9090-1601

Topcon's LS-B100 series comprise advanced technology, value-priced laser receivers for dozers, scrapers, excavators, backhoes, and drag-boxes.

All LS-B100 receivers feature simple, secure mechanical mounting, 360 degree beam detection, adjustable on-grade accuracy, alkaline or rechargeable battery operation, water and dustproof case iron construction and bright, multi-colour LED displays.

Recommended for: 2D earthmoving applications

Suitable for: Site preparation, drainage

Features:

• Large working range
• 360 degree detection
• Rugged, waterproof design
• Indicate control
• On-grade matching
• Universal pole clamp

Specifications:

• Detector angle: 360°: 360°: 360°
• Detector range: 175 mm: 250 mm: 250 mm
• Detectable laser wave length: 633 to 785 nm: 633 to 785 nm: 633 to 785 nm
• Detective precision
• Mode 1: ± 3 mm: ± 3 mm: ± 3 mm
• Mode 2: ± 6 mm: ± 6 mm: ± 6 mm
• Mode 3: ± 15 mm: ± 15 mm: ± 15 mm
• Mode 4: mm± 30 mm: mm± 30 mm: mm± 30 mm
• Laser detecting range (diameter)
• w/ Topcon RL-100 1S/2S: 800 m: 800 m: 800 m
• Machine control Hydraulic compatible: No: Yes: Yes
• Plumb and slope indicator: No: Yes: Yes
• Optional Remote display (RD-100W) via Bluetooth: No: No: Yes
• Wireless communication (RD-100W): No: No: 20 m
• Bluetooth: No: No: Yes
• Operating time: 100 hours50 hours: 80 hours 40 hours: 40 hours 18 hours
• (approx)
• Alkaline (standard)
• Rechargeable (option)
• Power from machine (PC-18 cable, optional): Yes: Yes: Yes
• Power save and laser-on power save: Yes: Yes: Yes
• Auto shutoff after 60 minutes: Yes: Yes: Yes
• Waterproof: IP66: IP66: IP66
