Dual Grade Red Beam Rotating Laser Level RL-200 2S Kit With Rechargeable Battery & LS-100D Receiver
$7,989.00
SKU
1013473-01
Barcode
9345954004386
Topcon's RL-200 2S Dual Grade Rotating Laser provides a high grade repeatability of 7 arc seconds. Setup after setup, time after time, you're always right on grade. Topcon lasers are suited to a range of construction exercises including site preparation, drainage, earthworks, 2D machine control applications & more. The RL-200 2S can be used over long distances (up to 1,100m) & can measure up to a 25% slope, allowing you to set the cross slope & elevation values you need to measure. The RL-200 2S provides dual slopes up to ±10% in the X axis, or up to -5 to +25% in the Y axis. Topcon slope lasers set new standards for simplicity & accuracy. The RL-200 comes with a full-utility radio remote & many other features. All operating information is on display, so operators can quickly change grade, select menu settings, check operational status, & verify battery life at any time.

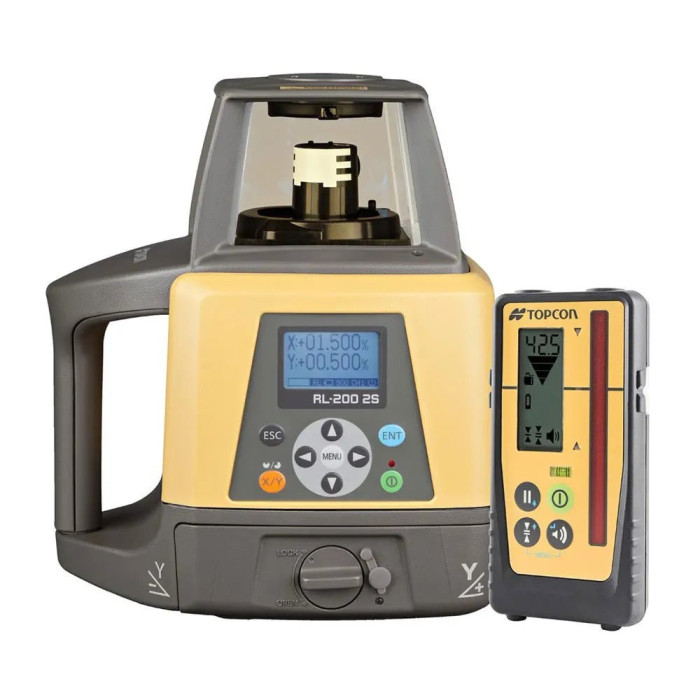

Topcon RL-200 2S (1013473-01) Dual Grade Red Beam Rotating Laser Level Kit With Rechargeable Battery & LS-100D Receiver
Includes:
- Topcon RL200 2S Dual Grade Rotating Laser
- Hard Case
- Topcon LS-100D Premium Receiver (mm)
- Receiver Holder
- RC-400 Remote Control
- Rechargeable NIMH Battery Kit
- Instruction Manual
- Australian Calibration Certificate
Features:
- High Quality Functionality To Provide You With The Best Laser Level - With 90 hours of battery life, the RL-200 will last the distance. Easy to use, the clear graphical display makes operation a breeze. With an increased working diameter of 1,100m, the RL-200 has higher specifications than many other slope lasers on the market.
- Advanced Slope Laser System - The RL-200 has an environmental rating of IP66, meaning the instrument can be exposed to adverse environmental conditions without being damaged. This includes getting wet, whether from the rain or a spill, or being covered in dust – whatever the conditions outside – the RL-200 will stay safe. With a seven arc second accuracy & a five-year warranty, you can’t go wrong with the RL-200 lasers.
- Control The Rl-200 Remotely - In the latest in remote control technology, the RL-200 can be fully operated via a radio remote. All the information you need is displayed on the remote control, allowing you to change the grade of the slope measurement, check menu settings & operational details, look at how much battery remains, & more.
- Accuracy - The RL-200 best laser levels have perfect accuracy & will be able to deliver all the data you require
- Premium Receiver - Kit includes the premium LS-100D Premium Receiver (mm)
Specifications:
- Accuracy H: ±7 arc seconds
- Repeatability: 7 arc seconds
- Auto-Level Range: Horizontal ±5°
- Grade Range: ±10% / -5% to +25%
- Working Area: 1100 m
- Rotation Speed: 300, 600, 900 rpm
- Dust/Water Rating: IP66
- Operating Temperature: -20°C to 50°C
- Operating Time: NIMH Rechargeable (90 hours)
- Receiver: LS-100D Premium Receiver (mm)
- RC-400 Remote: Up to 300m
- Size (H x W x L): 253 x 218 x 174 mm
Warranty:
- 5 Year Limited Warranty by Topcon Australia.
| Model Number | 1013473-01 |
|---|---|
| gtin | 9345954004386 |
| Brand | Topcon |
