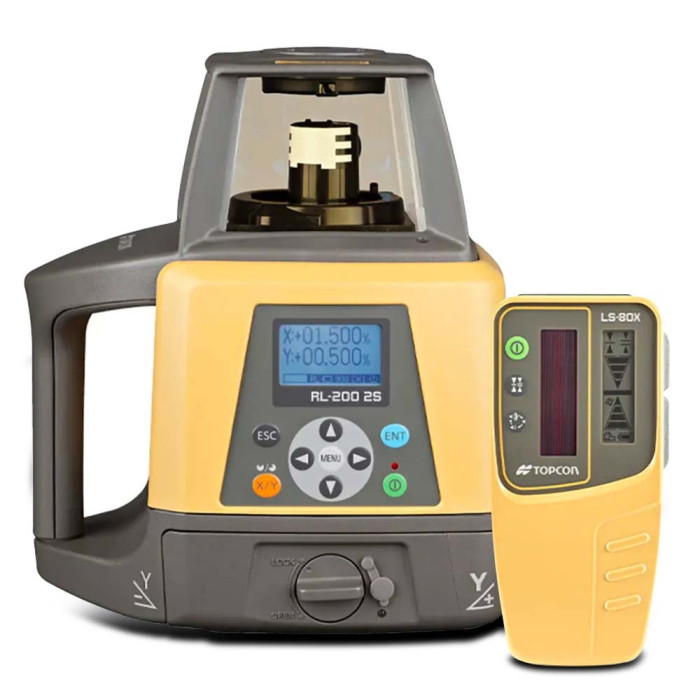

RL-200 2S 1100m Dual Grade Rechargeable Rotary Laser Level with LS-80X Receiver & Remote Control
$7,870.01
SKU
314920853
Topcon’s RL-200 2S Dual Grade Rotating Laser provides a high grade repeatability of 7 arc seconds. Setup after setup, time after time, you’re always right on grade.
The RL-200 2S can be used over long distances (up to 1,100m) and can measure up to a 25% slope, allowing you to set the cross slope and elevation values you need to measure. The RL-200 2S provides dual slopes up to ±10% in the X axis, or up to -5 to +25% in the Y axis.
Topcon RL-200 2S (314920853) 1100m Dual Grade Rechargeable Rotary Laser Level with LS-80X Receiver & Remote Control
Features:
- Working Range 1100m
- Wide Dual Grade (Up to 25%)
- Accuracy ±1mm @ 30m
- Dust/Water Rating IP66
- LS-80X Hand Receiver
- Full Function Remote
- High graphic Display
Suitable For:
- Construction Exercises
- Site Preperation
- Drainage
- Earthworks
- 2D Machine Control Applications
Specifications:
- Accuracy H: ±7 arc seconds
- Auto-Level Range Horizontal ±5°
- Grade: Dual ±10% / -5% to +25%
- Working Area 1100 m (Diameter)
- Rotation Speed 300, 600, 900 rpm
- Dust/Water Rating IP66
- Operating Temp. -20ºC to 50ºC
- Operating Time NIMH Rechargeable (90 hours)
- LS-80X Hand) Receiver (±1mm & 2mm)
- RC-400 Remote: Up to 300m
- Dimensions: 255mm x 220mm x 175mm
| Model Number | 314920853 |
|---|---|
| Brand | Topcon |
