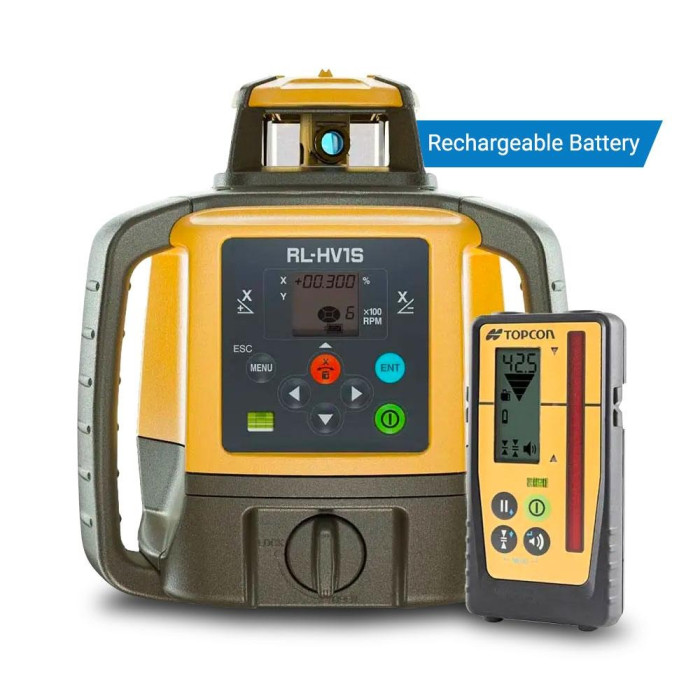

RL-HV1S Single Grade Rotating Laser with Rechargeable Battery & LS-100D Receiver
The RL-HV1S single-grade laser from Topcon is built for ultimate durability, designed to be rugged and compact, allowing you to get twice the laser & Bluetooth pairing for a great price. Designed for a wide variety of applications,; it can be used for horizontal, sloping and vertical laser applications. Slopes up to ±15% can be used in the X axis. Turn it on its side and use it for layout and alignment applications. The RL-HV1S excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover a 800m (diameter) jobsite. As well as remote pairing and operation from your smart phone (Horizontal operation 100m, Vertical Operation 20m). The RL-HV2S is “jobsite tough” and with its IP66 rating, the unit can withstand dust, a sudden shower and even torrential rainfall. Topcon stands behind this reliable and accurate laser with a 5 year warranty.
Topcon RL-HV1S (1051612-09) Single Grade Rotating Laser with Rechargeable Battery & LS-100D Receiver
Includes:
- Topcon RL-HV1S Single Grade Laser
- Laser Manager App
- Premium LS-100D (mm) Receiver
- Sensor Holder (Holder-110)
- NIMH BT-79Q Batteries
- Charger (AD-15E)
- Carrying Case
Features:
- Long operating range of up to 800m (diameter)
- Accuracy of ±10 Arc Seconds and Single Grade Range of ±15%
- Horizontal/Vertical Self-leveling within ±5º
- Features Laser Manager App for Bluetooth Connectivity
- Rotational Speeds: 300, 600 RPM (selectable)
- All-weather dependability, with a rating of IP66, it can withstand dust and even torrential rainfall
- Battery life up to 120 hours
Specifications:
- Battery life (with rechargeable Ni-MH battery pack): Up to 65 hours
- Power source: NiMH rechargeable
- Percentage Grade: ±15%
- Accuracy Grade: ±10 arc seconds
- Protection class: IP66 dustproof and water resistant
- Adjustable Rotating Speed: 300, 600 RPM (selectable)
- Remote Control Operating: via Bluetooth (Laser Manager App)
- Opertating Temperature: -20 to 50ºC
Warranty:
- 5 Years Warranty Covered by Topcon
| Model Number | 1051612-09 |
|---|---|
| gtin | 9345954004270 |
| Brand | Topcon |
