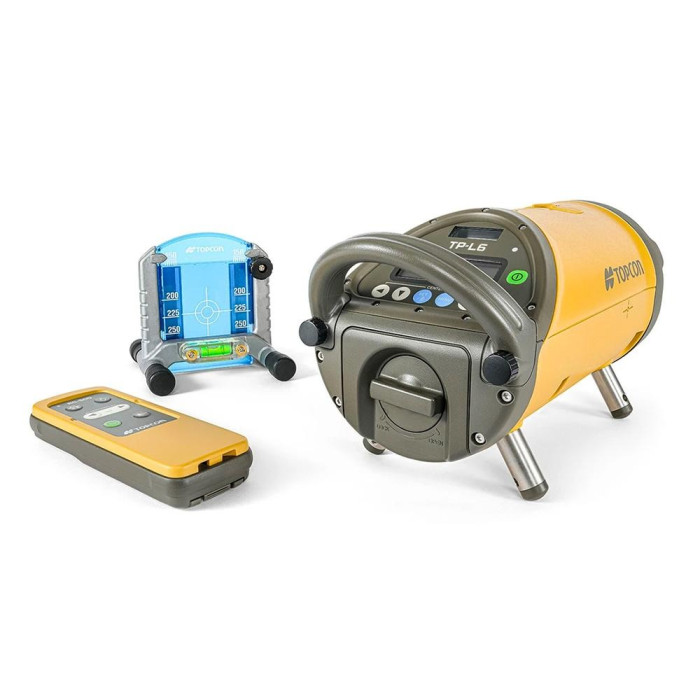

Pipe Laser Green Beam High Accuracy TP-L6WBG
$9,075.00
SKU
1034437-11
Topcon’s latest TP-L6 series of pipe laser levels set a new standard for accurate, reliable measurements in plumbing and drainage applications. With a new compact design the Topcon TP-L6 can be used in even the tightest of pits. Available in economical red beam or high visibility green beam, the new Topcon pipe lasers come with better than ever battery life to keep you working.
Topcon TP-L6WBG (1034437-11) Green Beam High Accuracy Pipe Laser
Includes:
- Leg sets for 15 cm, 20 cm, 25 cm or 30 cm pipes
- Single pointed foot
- 15 to 45 cm adjustable targets
- Remote control RC-500
- Ni-MH battery and charger
- Carry case
Features:
- Compact design adds flexibility to work in restricted spaces
- Enhanced battery life – works for up to 60 hours off a single charge!
- Bluetooth connectivity
- -15% to +40% grade range means its up to any job
- Self levelling to give you confidence you are working accurately
- App control and display via your Android phone
Applications:
- Plumbing
- Drainage applications
Specifications:
- Wave Length: 520nm, Green beam diode
- Laser Power Ouput: 4.5mW
- Laser Class: Class 3R
- Lser Diameter: 12mm
- Line Control width: 17º
- Accuracy: Horizontal ± 10 arc seconds
- Operating range:
- Laser: 5 m - 150 m
- Laser source: visible laser diode
- Laser Power output:
- Upper laser beam: 1mW (max)
- Lower laser beam: 1.2mW (max)
- Compensating Range:
- Grade setting direction: Approx ± 4º
- Rotating direction: ± 2º
- Vertical accuracy:
- Upper: ± 1.5º
- Lower: ± 3.5º
| Model Number | 1034437-11 |
|---|---|
| Brand | Topcon |
