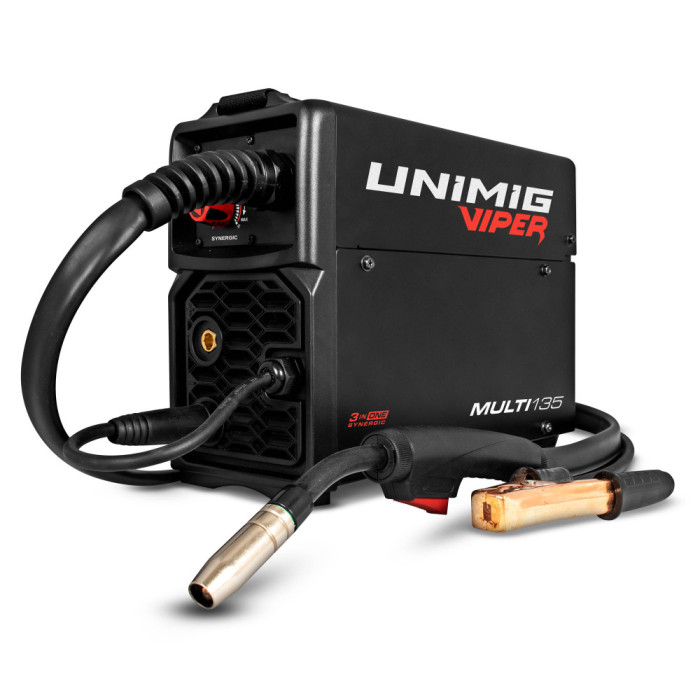

Viper Multi 135 MIG/TIG/STICK Electric Welder

UNIMIG U11005K Viper Multi 135 MIG/TIG/STICK Electric Welder

Need something small for your next project? The VIPER 135 is a multi-process machine, capable of MIG, TIG and STICK welding, plus it comes set with synergic programs. It's perfect for small repairs and home DIY. Weighing only 5.2kg and with a 10amp plug, you can take it anywhere.

Package includes:

• VIPER MULTI 135 MIG/TIG/STICK Welder
• 2m Direct Connect MIG Torch
• 2m Earth Clamp & Lead
• Electrode Holder
• 2m Gas Hose Complete with fittings
• 1kg E71T-GS 0.8mm Gasless Wire
• Operating Manual

Features:

• 10 AMP Plug - Connect to any standard outlet.
  • Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
• Gas & Gasless MIG - Mild Steel.
  • This machine supports both gas-shielded MIG and gasless MIG wire, meaning you can easily run mild steel, stainless steel & flux-cored MIG wire.
• Synergic MIG Control - Take the guesswork out of setup
  • The clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and adjust the Synergic power knob to the thickness of your material. The program works with 0.6, 0.8 and 0.9mm mild steel, stainless steel & flux-cored wires.
• 3-in-1 Multiprocess - Weld in MIG, TIG & MMA
  • This three-in-one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is no need to swap between machines, saving you time and setup.
• Lightweight & portable
  • Weighing just over 5kg, the VIPER MULTI 135 is ready to go anywhere you need it. Also included is a shoulder strap for extra comfort and portability.

Specifications:

• Machine Specifications:

  • Primary Input Voltage - 240V Single Phase
  • Supply Plug - 10 Amp
  • Rated Input Power (kVA) - 4.15
  • Ieff (A) - 8.4
  • Rated Output - 40/16V-135A/21V
  • No Load Voltage (V) - 68
  • Protection Class - IP21S
  • Insulation Class - H
  • Power Factor - 0.68
  • Minimum Generator (Kva) - 8.0
  • Dinse Connector - 10/25
  • Standard - AS/NZ60974-1
  • Suitable Material - Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
  • Warranty (Years) - 2
• MIG Specifications:

  • MIG Welding Current Range - 40-135A
  • MIG Duty Cycle @ 40°C - 15% @ 135A, 60% @ 65A, 100% @ 50A
  • MIG Wire Size Range - 0.6-0.9mm
  • MIG Wire Spool Size - 1kg
  • MIG Welding Thickness Range - 1-6mm
• TIG Specifications:

  • TIG Function Type - DC Lift Arc
  • TIG Welding Current Range - 20-120A
  • TIG Duty Cycle @ 40°C - 15% @ 120A, 60% @ 60A, 100% @ 45A
  • TIG Welding Thickness Range - 1-6mm
• STICK Specifications:

  • STICK Welding Current Range - 20-120a
  • STICK Duty Cycle @ 40°C - 15% @ 120A, 60% @ 60A, 100% @ 45A
  • STICK Electrode Range - 2.5-3.2mm
  • STICK Welding Thickness Range - 1-6mm
• Size & Weight:

  • Dimensions (mm) - 353x132x250mm
  • Weight (Kg) - 5.2kg
• Machine Features:

  • Wire Drive - Standard
  • VRD - Yes
  • Thermal Overload Protection - Over Temperature Warning
