EVOLVE MULTI 500 Pulse MIG Welder

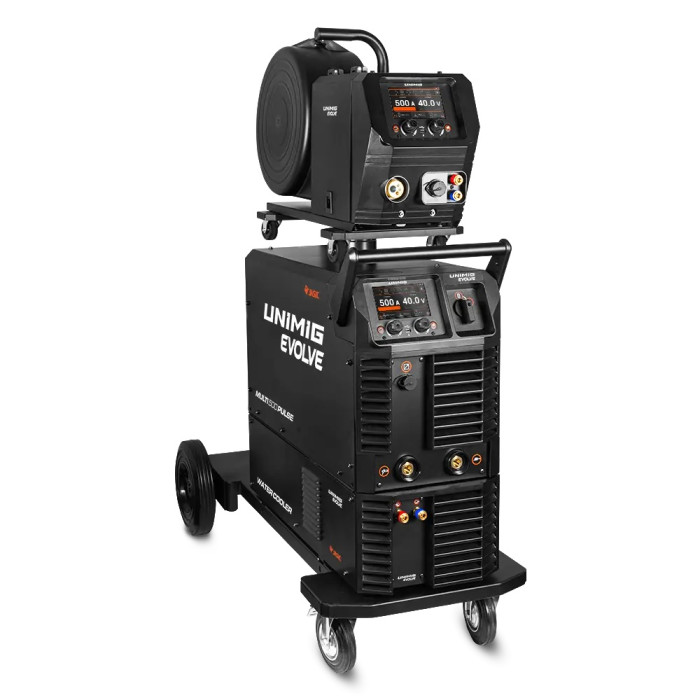

UNIMIG U11142 EVOLVE MULTI 500 Pulse MIG Welder

Packed full of revolutionary technologies, futureproof your workshop or worksite with our professional EVOLVE MULTI 500 PULSE.

In the box:

• EVOLVE MULTI 500 PULSE Welder
• EVOLVE Separate Wire Feeder Module
• EVOLVE Water Cooler Module
• EVOLVE Trolley
• 3m M580W MIG Torch
• Consumable Kit
• 3m 500A Twist Lock Electrode Holder
• 3m 500A Earth Clamp & Lead
• Twin Gauge Argon Regulator
• 1.8m Quick-Connect Gas Hose
• Operating Manual
• 2x 1.0-1.2mm U Groove Roller
• 2x 1.2-1.6mm U Groove Roller
• 2x 0.9-1.2mm V Groove Roller
• 2x 1.2-1.6mm V Groove Roller

Features:

• Not All Pulse Machines Are Equal - No spatter. Less heat. Same penetration. Streamline your welds with the single and double pulse functions.
• Single Pulse - A single pulse weld alternates between a peak and base current, which works to minimise the amount of heat input without compromising on any of the penetration. The addition of a base current and reduction in heat means it's perfect for softer materials like aluminium. Pulse welding is also done by spray transfer, eliminating spatter and cutting your post-weld clean-up time.
• Double Pulse - A double pulse weld alternates between a peak current and two base currents, reducing the heat input of the weld even further than single pulse, while still maintaining all of the benefits. Because of the faster freezing puddle, your double pulse welds come out looking just like a stack of dimes. You get the aesthetics of a TIG weld with all the speed of spray MIG.
• 100+ Smart-Set MIG Programs - Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It'll pick the optimal settings for your weld.
• Modular Add Ons - Futureproof your purchase with the EVOLVE MULTI 500 PULSE, with the option to add additional modules as you need them. These optional modules include an AC/DC TIG module for all your future needs.
• Separate Wire Feeder - Get the ultimate flexibility. The addition of a separate wire feeder means you can detach the wire feeder from the main power source, giving you an extra 10m of manoeuvrability.
• Advanced MIG Features -
• Hot Start - Get the smoothest arc start possible. The Hot Start function gives a boost of current at the beginning of your weld, eliminating any issues with starting on cold metal, letting you weld on thicker materials and making welding aluminium even easier.
• Crater Fill - End your welds as strong as they started. Crater Fill ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes.
• Push-Pull Ready - Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a 'Pull' motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.
• Longer Torch Consumable Life - Get superior life out of every torch consumable. Designed for maximum performance, you’ll get 6x longer life with Arc Torchology consumables.
• Contact Tip Performance - The Arc Torchology contact tips lasted up to 6x longer, withstanding the maximum amperage for 30 hours vs the Binzel 501D's 5 hours.
• Gas Nozzle Performance - The Arc Torchology gas nozzles lasted up to 3x longer, withstanding the maximum amperage for 75 hours vs the Binzel 501D's 25 hours.
• Tip Adapter Performance - The Arc Torchology tip adapters lasted up to 5x longer, withstanding the maximum amperage for 250 hours vs the Binzel 501D's 50 hours.
• Cooler Running Torches - The Arc Torchology gas nozzles run 75% cooler in a 15-minute period, with a maximum temperature of 200°C vs the competitor's 350°C.
• Less Maintenance & Downtime - Spend less time cleaning your consumables and have them last longer with 90% less spatter adhesion.
• Contact Tip Performance - The Arc Torchology contact tips had 90% less spatter adhesion on the tip's face, with only 9% spatter vs the Binzel 501D's 100%.
• Gas Nozzle Performance - The Arc Torchology gas nozzle had 33% less spatter adhesion on the nozzle's face, with only 67% spatter vs the Binzel 501D's 100%.
• Power Factor Correction (PFC) - Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
• Inverter Technology - Not every inverter is made equal. With UNIMIG's ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
• 4 Geared Wire Drive - The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire-feeding, especially with longer torches.
• IP23S - Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
• Advanced MMA Features - Advanced MMA features are designed for improving weld quality and ease of use.
• Arc Force - The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
• Hot Start - The adjustable hot start is designed to help with striking an arc. The hot start temporarily boosts the output current at the start, making striking an arc, even with difficult electrodes, much easier. You get smoother arc starts, improving the quality of your weld.
• Anti-Stick - The Anti Stick feature, which is always on, prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will drop significantly, so the electrode can be removed.
• Job Memory - Save all of your favourite settings with the Job Memory feature. With up to 100 saves available, you’ll never need to memorise your parameters again. Plus, seamlessly switch between different jobs with the touch of a button.
• Digital Control Torch - Our digital MIG torch allows you to adjust your settings on the fly. Change the amps, current and voltage at the touch of a torch button.
• Large Wire Spool Capacity - Fits both D200 and D300 wire spools, so you can put 15kg mild steel or 7kg aluminium spools in the machine.
• Robotics Connection - The robot connection lets you integrate a robotic arm into your workflow, which can improve the precision, consistency, and efficiency across welding tasks. It allows for automated, repeatable welds, reducing human error and improving productivity.
• Inductance Control - Take complete control of your arc with the inductance settings. By changing the frequency of your short circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.
• Burnback Adjustment - Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld.
