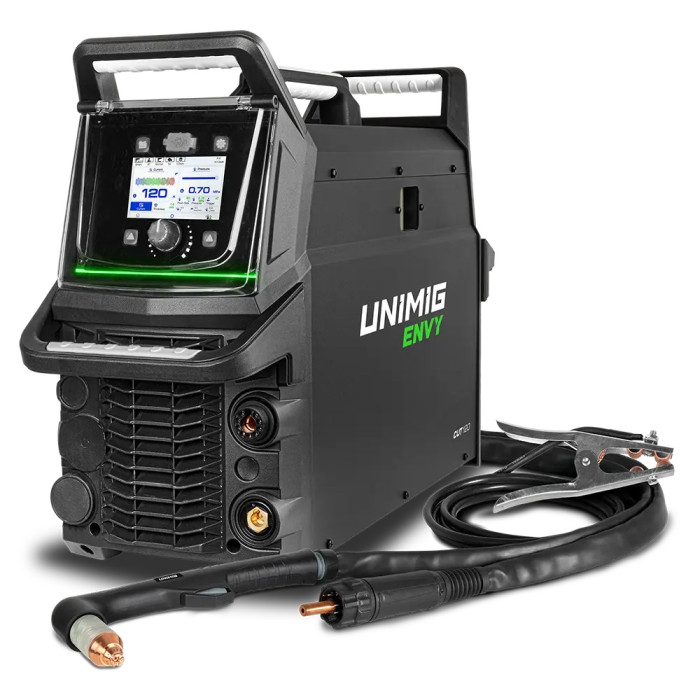

ENVY CUT 120 Plasma Cutter

UNIMIG U11540 ENVY CUT 120 Plasma Cutter

In the box:

• ENVY CUT 120 Plasma Cutter
• 6m SC160 Plasma Torch
• 4m 300A Earth Clamp & Lead
• Operating Manual

Features:

• 5” LCD Touchscreen - Navigation has never been easier. With the 5” LCD touchscreen, selecting your cut parameters or changing your settings mid-cut is effortless. Prefer physical buttons? Use the traditional control knobs to make all of your adjustments
• CNC Connectivity - Not just a handheld plasma cutter, the CNC connection lets you plug in a CNC torch and run it on a CNC table, so you can choose how you use it.
• Digital Air Pressure Regulation - Set and forget. The ENVY CUT 120 & 160 feature a built-in digital air pressure regulator that automatically adjusts the output pressure based on your selected cutting mode. This ensures optimal performance across all processes without needing manual pressure adjustments, giving you consistent results with every cut.
• Pilot Arc Start - Get unrivalled performance across every kind of metal. With the perforated cutting mode, you can Start your arc on any surface: painted, greasy, or rusted, or don’t start on the surface at all. A pilot arc start will ignite the arc even from a short distance away, giving you better control and longer-lasting consumables.
• Job Memory - The job memory function allows you to enter and store cut parameter settings. Cut parameters can be further adjusted and stored as required. A total of 100 Jobs can be memorised and stored for recall.
• Air Test - The Air Test feature lets you test the air pressure before proceeding with cutting, to easily check you’ve set the optimal parameters.
• Gouging Mode - Remove metal with precision and ease. Switch to gouging mode to cleanly remove welds, defects, or unwanted material without grinding and preserve more of your original workpiece.
• Smart-Set Programs - The easiest way to set up for a plasma cut, simply select your cutting type, material type and thickness, and you’re good to go
• Perforated Cut Mode - Get unrivalled performance across every kind of metal. With the perforated cutting mode, you can cut materials like grating or mesh without interruption, so you’re not limited to solid plates.

Specifications:

• Primary Input Voltage - 415V Three-Phase
• Supply Plug - 32A
• Ieff (A) - 27.5
• Imax (A) - 27.5
• Rated Output - 20-120A
• No Load Voltage (V) - 402
• Protection Class - IP21S
• Insulation Class - H
• Minimum Generator (kVA) - 26
• Air Flow Draw (L/min) - 140-330
• Air Flow Pressure -
  • 43.5-101.5psi
  • 3-7bar
  • 0.3-0.7MPa
• Dinse Connector - 35/50
• Standard - AS 60974.1
• Warranty (Years) - 5
• Plasma Specifications
  • Plasma Cut Current Range (A) - 20-120A
  • Plasma Cut Duty Cycle @ 40°C - 100% @ 120A
  • Mild Steel Cut Thickness - 50mm
  • Mild Steel Severance Thickness - 70mm
  • Stainless Cut Thickness - 45mm
  • Aluminium Cut Thickness - 40mm
  • Copper Cut Thickness - 25mm
• Size & Weight
  • Dimensions (mm) – 810 x 280 x 520mm
  • Weight (kg) - 39.2kg
