Viper Cut 30 Mk II Plasma Cutter
$799.00
SKU
U14005K
Cut anything, anywhere. Whether it’s solid or perforated metal, you’ll get a clean cut up to 12mm thick. Now with the addition of a CNC connection, the VIPER CUT 30 Mk II can handle anything you throw at it.

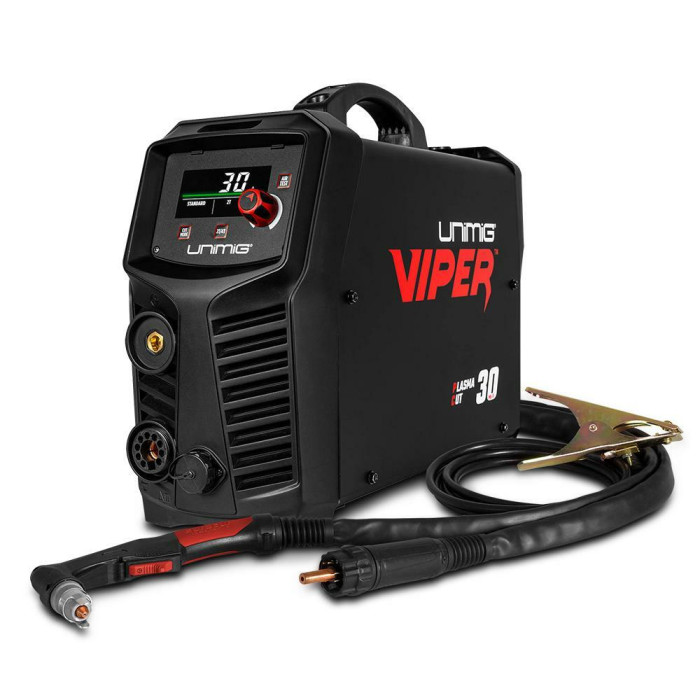

UNIMIG U14005K Viper Cut 30 Mk II Plasma Cutter
Features:
- Large LCD screen
- 6 metre Euro connect
- Torch Grid cutting mode
- CNC compatibility
- Light weight and compact
Specifications:
- Primary Input Voltage: 240v Single Phase
- Rated Input Power: 7.5kVA
- Rated Output Voltage: 92V
- Plasma Cut Duty Cycle @ 40°c: 15% @ 30Amps
- Supply Plug: 10A
- Insulation Class: F
- Protection Class: IP21S
- Plasma Arc Starting: Pilot Arc
- Air Flow Draw Off (l/min): 170
- Air Flow Pressure (Bar): 5-6 (70-87 psi)
- Cutting Thickness:
- Mild Steel (Clean): 12mm
- Mild Steel (Severance): 14mm
- Aluminium: 6mm
- Aluminium (Severance): 8mm
- Stainless Steel: 6mm
- Stainless Steel (Severance): 8mm
- Dinse Connector: 10/25
- Dimensions (L x W x H): 534mm x 166mm x 343mm
- Weight: 8.5kg
| Model Number | U14005K |
|---|---|
| Brand | Unimig |
