RAZOR CUT 45 Plasma Cutter
$1,819.00
SKU
U14006K
The UNIMIG Razor Cut 45 Plasma Cutter is super light and portable at only 10kg, so it is ready to go anywhere you need it. It features a HD Backlit Interface which is bright and easy to read in any environment. Also has a smart fan which diminishes noise, saves power, helps reduce energy costs, & minimises the number of contaminants being pulled through the machine.

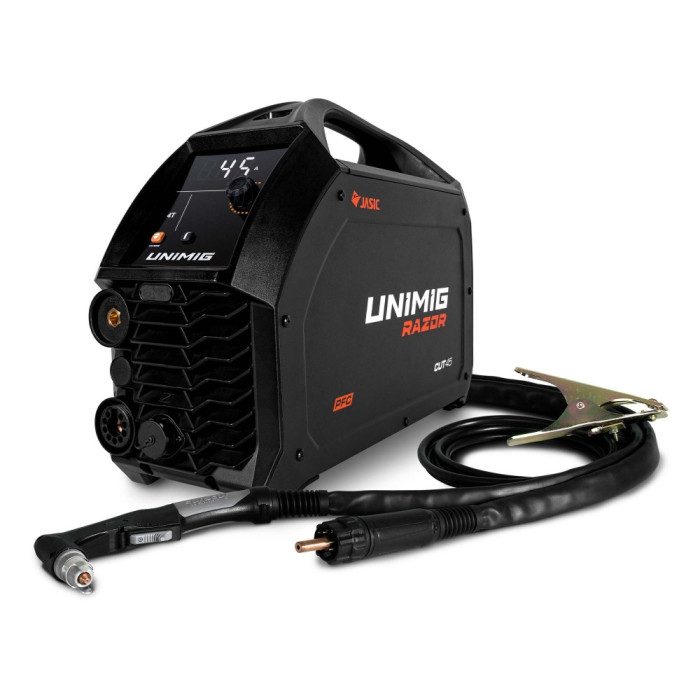

UNIMIG U14006K RAZOR CUT 45 Plasma Cutter
Includes:
- 6m SC80 Plasma Torch
- 4m 300 AMP Earth Clamp
- Air Regulator
- Operating Manual
Features:
- HD Backlit Interface - This next generation interface panel is bright & easy to read in any environment.
- Power Factor Correction - PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, & PFC is also designed to be generator friendly.
- CNC Connectivity - Easy access front panel port for & adjustable feedback ratio for CNC connectivity.
- Perforated Cut Mode - Now you can cut perforated metal without having to restart the arc between gaps. Simply shift into perforated cutting mode & slice through perforated metal with ease.
- Pilot Arc Start - Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.
- 2T/4T Trigger Modes - Designed for user preference & comfort, adjustable trigger modes allow you to either hold the trigger down throughout the cut, or use the trigger as a on/off switch by pulling to start & pulling to stop.
- Smart Fan - Smart Fan diminishes noise, saves power, helps reduce energy costs, & minimises the number of contaminants being pulled through the machine.
- Lightweight & Portable - Weighing just 10kg, the RAZOR CUT 45 is ready to go anywhere you need it.
Specifications:
- Primary Input Voltage: 240V Single Phase
- Supply Plug: 15A
- Rated Input Current: 23A
- No Load Voltage: 300V
- leff: 15A
- Air Flow Draw Off: 189 L/min
- Air Flow Pressure (Bar): 5.17 (75psi) (0.5 MPa)
- Current Range: 20-45A
- Machine Duty Cycle: 25% @ 45A, 60% @ 30A, 100% @ 20A
- Protection Class: IP23S
- Insulation Class: H
- Dinse Connector: 10/25
- Standard: AS/NZ60974-1
- Plasma Arc Start: Pilot Arc
- CNC Connection: Yes
- Thermal Overload Protection: Over Temperature Warning
- Plasma Cut Thickness Rating:
- Mild Steel Clean Cut: 16mm
- Mild Steel Severance Cut: 20mm
- Aluminium Clean Cut: 8mm
- Aluminium Severance Cut: 10mm
- Stainless Steel Cut: 8mm
- Stainless Steel Severance Cut: 10mm
- Dimensions (L x W x H): 546mm x 169mm x 341mm
- Weight: 10kg
Warranty:
- 3 Year Limited Warranty By UNIMIG
| Model Number | U14006K |
|---|---|
| Brand | Unimig |
