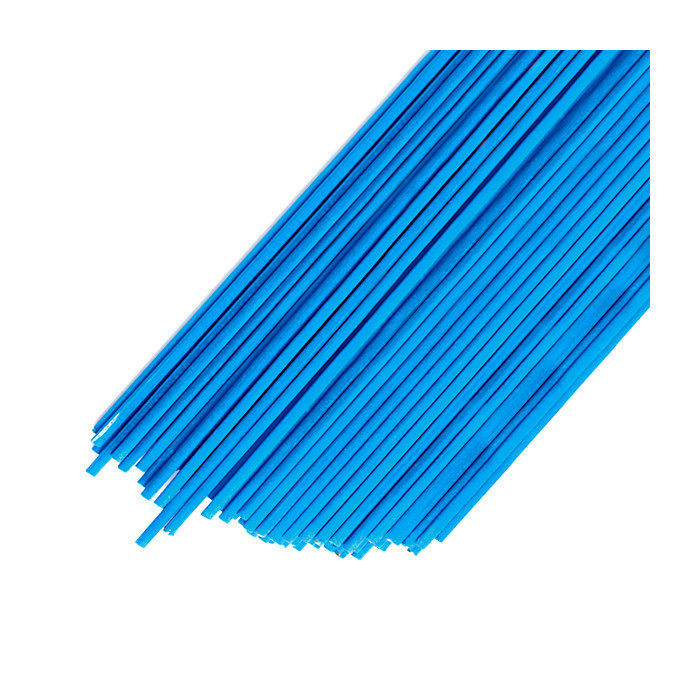

Bossweld Manganese Bronze Flux Coated 3.2mm TIG Welding Rods - 1kg
Low fuming, general purpose bronze filler rod for braze welding of bronze, cast iron steel and malleable iron. Manganese bronze is the ideal maintenance rod due to its versatility and good mechanical properties. Its high bond strength makes it suitable for use in a wide range of self-fluxing applications.
Excellent choice for rush jobs or temporary applications involving dissimilar metals or where rust is present. Galvanized parts can be brazed without causing damage to the zinc coating. Best for color matches on yellow brass and bronze castings.
Bossweld 300113H Manganese Bronze Flux Coated 3.2mm TIG Welding Rods - 1kg
Features:
- Low fuming, flux coated general purpose bronze filler rod
- Ductile weld metal
- Good mechanical properties
- Excellent maintenance wire
- Horizontal and vertical welding positions
Applications:
Used extensively for gas brazing steel, copper alloys, cast iron, nickel alloys and stainless steel. The weld deposits are non-porous for leak proof joints for water, oil and gas lines. The weld deposit freezes rapidly from fluid to a plastic state. Preheat is required for some applications and a brazing flux is recommended.
Clean joint area as thoroughly as possible. Bevel cracks or heavy sections. Utilize a slightly oxidizing flame; preheat the part to be brazed. If using bare LFB, dip it into the bronze brazing flux and then back to the area brazed. Apply the torch, keeping it in constant motion to avoid overheating a particular area of the base metal.
- Excellent maintenance wire
- Suitable for steel, stainless steel, copper and nickle alloys
Specifications:
- Yield Strength - 71 ksi
- Tensile Strength - > 400N/mm2
- Elongation (5xD) - 25%
- Classifications -
- AWS A5.8 RBCuZn-c
- UNS C68100
- ASME SFA 5.8
| Model Number | 300113H |
|---|---|
| Brand | Dynaweld |
