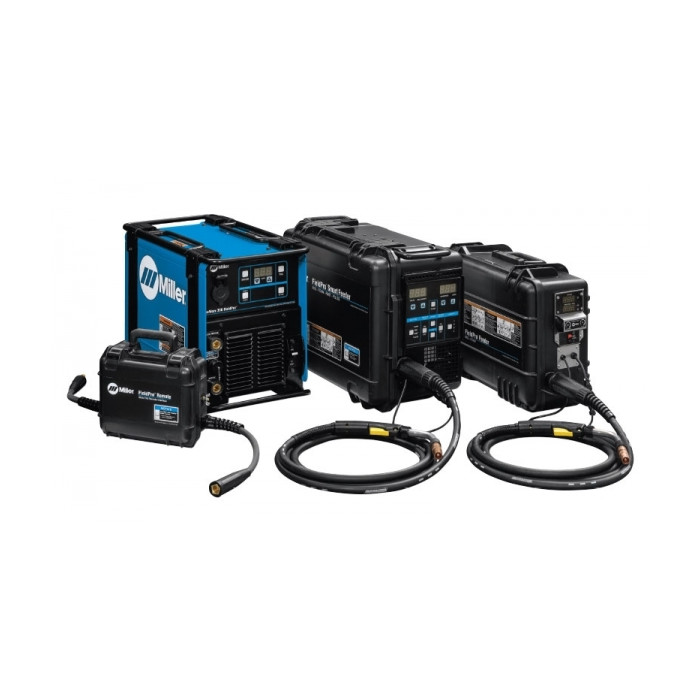

FIELDPRO SMART FEEDER (CE)

Auto-Line™ Power Management

Automatically compensates for various input Voltage. Suits jobsite and generator power. Keeps welding output constant even if input power varies by ±10%. Single or 3 phase.

Easy To Use:

• The PipeWorx 350 FieldPro™ is streamlined and simplified to reduce setup time and potential weld defects. Push button process changeover eliminates the need for swapping cables.
• The robust design will withstand harsh environments common in the field.

Complete Remote Control:

• The FieldPro™ Remote provides all the same functionality of the PipeWorx 350 FieldPro™ hundreds of feet from the power source, including process changeover, and Amperage adjustment with no special cables.
• Connect the FieldPro™ Remote in line with the electrode holder or TIG torch with standard welding cables and have complete remote control.

Superior Arc Perfomance:

• The optimized Stick and TIG performance specifically meets the needs of open root pipe welding and helps reduce training time and increases quality
• Starts maintain root opening and prepared edge and stops limit arc marks outside of the heat-affected zone.

Complete Control At the Weld Joint:

• FieldPro™ Remote reduces weld defects by automatically setting correct polarity for each welding process — without the need to manually swap cables.
• Eliminates the need to “get by” with less than optimal settings without control cables, and allows for easy setup of a new weld process with the touch of a button.
• Total remote control of welding processes and parameters improves safety by limiting jobsite movement and reducing slip, trip and fall hazards.

Simplified Cable Management:

• Save time by eliminating the need to trace cables back to change welding parameters and processes.
• No control cables to string and manage on the jobsite.

Arc Performance Optimised for Critical Pipe Welding:

• Industry-leading arc performance like the PipeWorx 400 Welding System, but in a field-ready package.
• True multi-process system provides conventional Stick, TIG, FCAW, and MIG welding as well as the advanced technologies of RMD and Pulse.
• Smart Feeder delivers excellent RMD and Pulse welding up to 60 metres away from the power source with no control cables.
• RMD and Pulse processes also help reduce weld failures and eliminate backing gas on some stainless and chromoly applications.

Applications:

• Refinery
• Process Piping
• Power
• Petrochemical
• HVAC and Water Pipe

Processes:

• Stick SMAW
• Pulsed MIG GMAW-P
• MIG RMD® GMAW MSC
• MIG GMAW
• Flux Cored FCAW
• DC TIG GTAW
• Air Carbon Arc CAC-A Cutting and Gouging

Specifications:

• Input Power: 3 Phase / 1 Phase
• Rated Output: 350 A at 34 VDC, 60% Duty Cycle / 300 A at 32 VDC, 60% Duty Cycle
• Voltage Range In CV Mode: 10 - 44 V
• Amperage Range in CC Mode: 10 - 350 A
• Max Open Circuit Voltage: 75 VDC

RMS Input At Rated Load Output, 50/60 Hz, 3 Phase At Nemaload Voltages & Class Rating:

• 230 V 1P: 36.1 / 54.6
• 460 V: 17.8 / 25.4
• 575 V : 14.1 / 19.9
• kVA: 15.0 / 11.7
• kW: 14.4 / 11.2
• Dimensions (mm): H: 432 / W: 305 / D: 559
• Weight: 43.1kg
