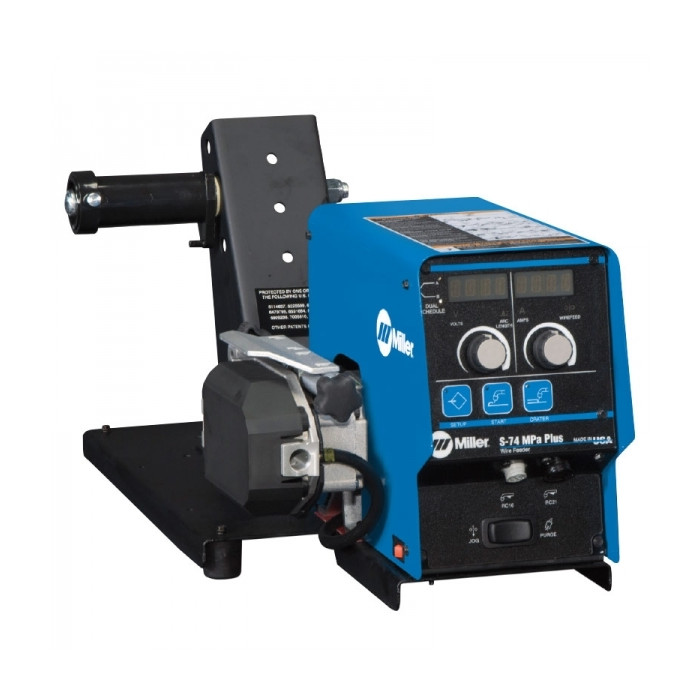

S-74MPA PLUS WIREFEEDER

Alumination™ Technology:

• Alumination™ technology gives you the ability to use the extended reach of a push-pull system for consistent, versatile and dependable aluminium wire feeding.
• Alumination™ gives you the versatility to handle whatever aluminium welding job you want to tackle.

Synergic Pulsed MIG:

• Synergic Pulsed MIG operation when optimized with the XMT MPa power supplies.
• Provides communication between the power source, feeder and gun.
• As wire speed increases/decreases, the pulse parameters also increase/decrease to match the right amount of power needed.

Trigger Schedule Select:

• Trigger schedule select allows the operator to select the alternative schedule by quickly tapping the gun trigger when not welding.
• When optimized with the XMT MPa power supply the operator can also switch from MIG to Pulsed MIG.

Profile Pulse™

• Profile Pulse™ provides TIG appearance with MIG simplicity and productivity.
• Achieve “stacked dime” weld bead appearance without back-stepping.
• Profile Pulse™ frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.

Specifications:

• Input Power: CV/DC
• Wire Speed: 1.3 - 19.8m/min
• Dimensions (mm): 356H x 533W x 889D
• Weight: 39.5 kg

Electrode Wire Diameter Capacity:

• Solid Wire: 0.9 – 1.6 mm
• Flux Cored: 1.2 – 2.8 mm
