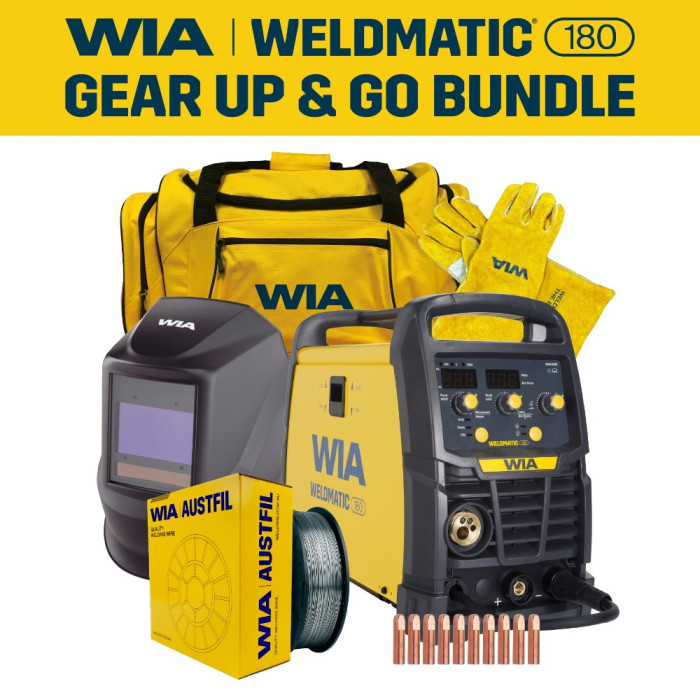

Weldmatic 180 MIG / Stick / TIG Welder Bundle

WIA CP141 Weldmatic 180 MIG / Stick / TIG Welder Bundle



Bundle Includes:

• WIA CP141-1 Weldmatic 180 MIG / Stick / TIG Welder
• WIA OpticFX Nero Welding Helmet
• Austfil T-11 0.9mm 5kg Spool of Wire
• Pair of MIG Welding Gloves
• Pack of 10 Contact Tips (PN: BE7489)
• WIA Duffle Bag



WIA CP141-1 Weldmatic 180 MIG / Stick / TIG Welder

Equipped with the latest technology, the 180 offers digital meters making adjusting parameters easier, plus it’s IP23S rated, providing extra protection in harsh environments. Built with quality components and manufactured with 3 years warranty, compared to others in its class you’ll get more than just a quality welder at a great price.

Package Includes:

• Euro Gun Cable (3m)
• Work Lead (3m)
• Gas Regulator
• Drive Rollers 0.6/0.8mm V Groove; 0.9/1.2mm Knurled (Gasless)
• Tips (0.6/0.8/0.9mm)
• Industrial Twist Lock Electrode Holder (3m)
• Austfil T-11 Gasless Sample Wire (0.9mm)
• ES6 Steel Sample Wire (0.8mm)

Features:

• Suitable Applications - Light Fabrication,  Repair and Maintenance,  Automotive,  Farming, Building and Construction
• Weldable Materials - Steel, Aluminium and Stainless Steel
• 180 A single phase MIG, Stick & TIG welder
• 180 A at 23 V 10% Duty Cycle
• Portable – Only 11kg
• Integrated wire feeder – Makes it compact and lightweight
• Digital Meters – Easy to read and easy to adjust parameters
• Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
• Arc Force – Provides a more stable arc and prevents electrode sticking
• Hot Start – For better, easier arc starting
• Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
• Suitable wires - Gas-shielded and gasless flux-cored wires
• Spool capacity - Takes 1kg and 5kg spools
• VRD (Voltage Reduction Device)
• IP23S rated – Provides extra protection in harsh environments
• Generator Compatible – 10 kVa

Specifications:

• Primary Voltage - 240 VAC-50/60Hz
• Rated Primary Current - 10 Amps
• Max Primary Current - 31 Amps
• Recommended Generator Power - 10kVa
• Supply Plug - 10 Amp
• IP Rating - IP23S
• Weight - 11kg
• Warranty - 3 Years
• Standards Compliance - AS60974.1 & AS1674.2 (VRD)

MIG Specifications:

• Output Range - 30A/15.5V-180A/23V
• Rated Output @ 40°C (10min) -
  • 180A/23V @ 10%
  • 73A/17.6V @ 60%
  • 57A/16.9V @ 100%
• Wire Size Range - 0.6/0.8/0.9mm
• Material Thickness Range - Welds up to 6mm steel plate, single pass

Stick Specifications:

• Current Range - 20A/20.8V-150A/26V
• Rated Output @ 40°C (10min) -
  • 150A/26V @ 10%
  • 61A/22.4V @ 60%
  • 47A/21.9V @ 100%

TIG Specifications:

• Current Range - 15A/10.6V-180A/17.2V
• Rated Output @ 40°C (10min) -
  • 180A/17.2V @ 10%
  • 73A/12.9V @ 60%
  • 57A/12.3V @ 100%



WIA SH300001 Welding Helmet OpticFX Nero

PROVIDES A FULL SPECTRUM OF COLOURS FOR A BETTER WELD

Features:

• Suits Stick, MIG, TIG & Plasma Cutting.
• Enhanced Optic Clarity - Allows the user to see a full spectrum of colours, providing a clearer, more detailed view of the weld.
• Intuitive Digital Controls - Simple design and large push buttons allow for easy mode/setting adjustments.
• Australian Standards - Tested in Australia, the lens and helmet comply with Australian Standards AS/NZS 1338.1 (Auto-Darkening) and AS/NZS 1337.1 B (High Impact).
• Operator Comfort - High quality headgear - fully adjustable, the headgear comes fitted with a large back cushion and an extra top band for better fit and comfort.
• Weighs only 555g
• Large Viewing Area - With a 100 x 60mm viewing area, the operator gets a better visual of the working area.
• Variable Shade Control - Variable control for adjustment of shade, lens sensitivity and delay for maximum control when welding. Shade 9-13.
• Magnifying Lens Holder - Built-in provision for magnifying lens*,if  required. *Magnifying lens not included.
• Grind Mode - Comes standard with Grind Mode, meaning you can use one helmet for all your welding requirements - including weld preparation and clean-up.
• Lens Delay Control - Used to adjust the time for the lens to switch to clear state after welding. Useful in eliminating bright rays present in high amp applications. Adjusts from 0.1 second-min to 0.9 second-max.
• 4 Arc Sensors - Provides continuous arc sensing capability. Lens automatically switches from light state 4 to adjustable welding shades 9-13 when an arc is struck. Lens darkening reaction time 1/12,500 sec.
• Sensitivity Control - Sensitivity control makes the lens more responsive to different light levels in various welding processes. Use mid-range (2-3) sensitivity setting for most applications.
• 3 Year Warranty - Like all WIA products, this product is manufactured with quality in mind. Tested under stringent conditions, we provide a 3 year warranty for your peace of mind.



WIA AUST11095KG Austfil T-11 Self-shielded Flux Cored Wire - 0.9mm - 5kg Spool

The Austfil T-11 is suitable for welding of mild and galvanized steels, gates, frames, sheds, light structures and general fabrication.

Classification:

• AS/NZS ISO 17632-B - T49ZT11-1NA-H15
• AWS A5.20: E71T-11

Features:

• Self-Shielded Flux Cored Wire
• All Positional Welding
• Single Pass / Multi Pass Applications
• Full Slag Covering and Easy Slag Removal
• Shielding Gas not required

Specifications:

• Operational data:
  • Wire Size (MM) - 0.9mm
  • Welding Current Range (A) - 80 - 150A
  • Arc Voltage Range* (V) - 15 - 18V
    • *Welding Current DC - Voltage is determined by arc current and wire arc length. Welding currents and voltage shown are operational guides only
• Typical All Weld Metal Chemical Analysis:
  • C - 0.06
  • Mn - 0.60
  • Si - 0.05
  • S - 0.008
  • P - 0.012
  • Al - 1.22
• Typical All Weld Metal Mechanical Analysis

  • Yield Strength - 430 Mpa
  • Tensile Strength - 530 Mpa
  • Elongation - 24%
