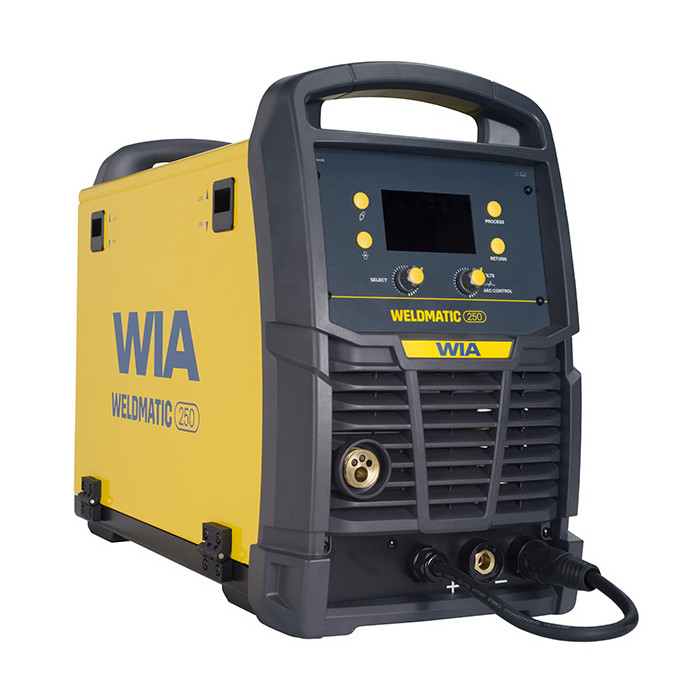

Weldmatic 250 MIG, TIG & Stick Welder Package
$1,999.00
SKU
CP143-1
Barcode
9314656655738
Portable but big on power, the Weldmatic 250 is capable of MIG, TIG and Stick welding and features an up-to-date and easy to use digital LCD interface for quick setup through pre-set parameters and memory selections. For workshop or on-site, the 250 takes 5kg and 15kg spools making it perfect for larger welding jobs. Built with quality components and manufactured with 3 years warranty, the Weldmatic 250 offers reliability and performance, making it the perfect powerful yet portable choice for regular welders.
Weldmatic 250 Package MIG TIG & Stick Welder 15AMP Plug
Package Includes:
- Euro Gun Cable (3.6m)
- Work Lead (3m)
- Gas Regulator
- Tips (0.6/0.8/0.9/1.2mm)
- Drive Rollers 0.9/1.2mm V Groove; 0.9/1.2mm Knurled (Gasless)
- Industrial Twist Lock Electrode Holder (3m_
Features:
- 250 A single phase MIG, Stick & TIG welder
- 250 A at 26.5 V 20% Duty Cycle
- Portable – 37kg. Comes with 2 handles for a two person lift
- Integrated wire feeder – Makes it compact and lightweight
- LCD interface – Simple to navigate it offers quick and easy setup through pre-set parameters and memory selection
- Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
- Arc Force – Provides a more stable arc and prevents electrode sticking
- Hot Start – For better, easier arc starting
- Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 5kg and 15kg spools
- IP21S rating
- Generator compatible – 14 kVa
Suitable Applications:
- Light to Medium Fabrication
- Repair and Maintenance
- Automotive
- Farming
- Building and Construction
Weldable Materials:
- Steel
- Stainless Steel
- Aluminium
Specifications:
- Primary Voltage - 240 VAC-50/60Hz
- Rated Primary Current - 19.2 Amps
- Max Primary Current - 43 Amps
- Recommended Generator Power - 14 kVa
- Supply Plug - 15 Amp
- Standards Compliance - AS60974.1 & AS1674.2 (VRD)
- IP Rating - IP21S
- Weight - 37kg
- Warranty - 3 Years
- MIG SPECIFICATION
- Output Range - 30A/15.5V-250A/26.5V
- Rated Output @ 40°C (10min) -
- 250A/26.5V @ 20%
- 144A/21.2V @ 60%
- 112A/19.6V @ 100%
- Wire Size Range - 0.6/0.8/0.9/1.2mm
- Material Thickness Range - Welds up to 10mm steel plate, single pass
- STICK SPECIFICATION
- Current Range 20A/20.8V-200A/28V
- Rated Output @ 40°C (10min) -
- 200A/28V @ 20%
- 115A/24.6V @ 60%
- 90A/23.6V @ 100%
- TIG SPECIFICATION
- Current Range - 10A/10.4V-250A/20V
- Rated Output @ 40°C (10min)
- 250A/20V @ 20%
- 114A/15.8V @ 60%
- 112A/14.5V @ 100%
| Model Number | CP143-1 |
|---|---|
| gtin | 9314656655738 |
| Brand | WIA |
