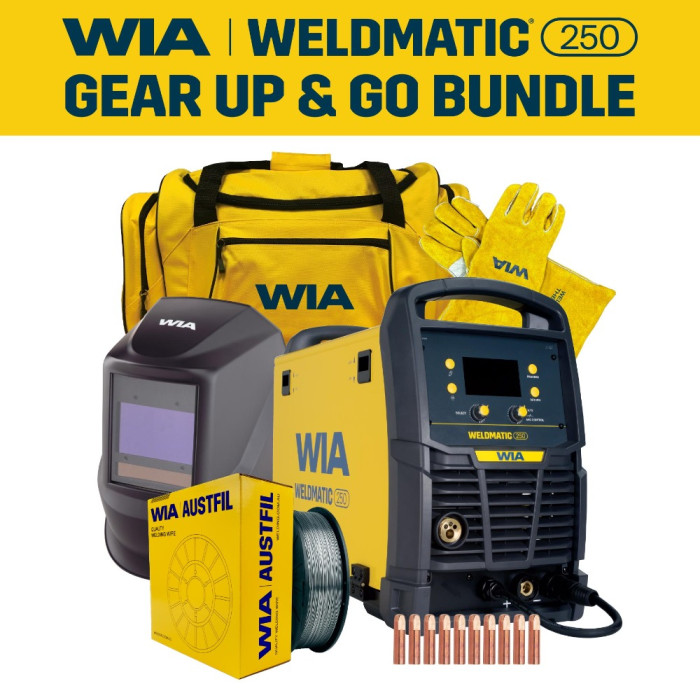

Weldmatic 250 MIG, TIG & Stick Welder Bundle

WIA CP143-BUNDLE Weldmatic 250 MIG, TIG & Stick Welder Bundle

Bundle Includes:

• Weldmatic 250 Package MIG TIG & Stick Welder 15AMP Plug
• WIA OpticFX Nero Welding Helmet
• Austfil T-11 0.9mm 5kg Spool of Wire
• Pair of MIG Welding Gloves
• Pack of 10 Contact Tips (PN: BE7489)
• WIA Duffle Bag

Weldmatic 250 Package MIG TIG & Stick Welder 15AMP Plug

Package Includes:

• Euro Gun Cable (3.6m)
• Work Lead (3m)
• Gas Regulator
• Tips (0.6/0.8/0.9/1.2mm)
• Drive Rollers 0.9/1.2mm V Groove; 0.9/1.2mm Knurled (Gasless)
• Industrial Twist Lock Electrode Holder (3m_

Features:

• 250 A single phase MIG, Stick & TIG welder
• 250 A at 26.5 V 20% Duty Cycle
• Portable – 37kg. Comes with 2 handles for a two person lift
• Integrated wire feeder – Makes it compact and lightweight
• LCD interface – Simple to navigate it offers quick and easy setup through pre-set parameters and memory selection
• Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
• Arc Force – Provides a more stable arc and prevents electrode sticking
• Hot Start – For better, easier arc starting
• Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
• Suitable wires - Gas-shielded and gasless flux-cored wires
• Spool capacity - Takes 5kg and 15kg spools
• IP21S rating
• Generator compatible – 14 kVa

Suitable Applications:

• Light to Medium Fabrication
• Repair and Maintenance
• Automotive
• Farming
• Building and Construction

Weldable Materials:

• Steel
• Stainless Steel
• Aluminium

 Specifications:

• Primary Voltage - 240 VAC-50/60Hz
• Rated Primary Current - 19.2 Amps
• Max Primary Current - 43 Amps
• Recommended Generator Power - 14 kVa
• Supply Plug - 15 Amp
• Standards Compliance - AS60974.1 & AS1674.2 (VRD)
• IP Rating - IP21S
• Weight - 37kg
• Warranty - 3 Years
• MIG SPECIFICATION

  • Output Range - 30A/15.5V-250A/26.5V
  • Rated Output @ 40°C (10min) -

    • 250A/26.5V @ 20%
    • 144A/21.2V @ 60%
    • 112A/19.6V @ 100%
  • Wire Size Range - 0.6/0.8/0.9/1.2mm
  • Material Thickness Range - Welds up to 10mm steel plate, single pass
• STICK SPECIFICATION

  • Current Range 20A/20.8V-200A/28V
  • Rated Output @ 40°C (10min) -

    • 200A/28V @ 20%
    • 115A/24.6V @ 60%
    • 90A/23.6V @ 100%
• TIG SPECIFICATION

  • Current Range - 10A/10.4V-250A/20V
  • Rated Output @ 40°C (10min)

    • 250A/20V @ 20%
    • 114A/15.8V @ 60%
    • 112A/14.5V @ 100%



WIA SH300001 Welding Helmet OpticFX Nero

PROVIDES A FULL SPECTRUM OF COLOURS FOR A BETTER WELD

Features:

• Suits Stick, MIG, TIG & Plasma Cutting.
• Enhanced Optic Clarity - Allows the user to see a full spectrum of colours, providing a clearer, more detailed view of the weld.
• Intuitive Digital Controls - Simple design and large push buttons allow for easy mode/setting adjustments.
• Australian Standards - Tested in Australia, the lens and helmet comply with Australian Standards AS/NZS 1338.1 (Auto-Darkening) and AS/NZS 1337.1 B (High Impact).
• Operator Comfort - High quality headgear - fully adjustable, the headgear comes fitted with a large back cushion and an extra top band for better fit and comfort.
• Weighs only 555g
• Large Viewing Area - With a 100 x 60mm viewing area, the operator gets a better visual of the working area.
• Variable Shade Control - Variable control for adjustment of shade, lens sensitivity and delay for maximum control when welding. Shade 9-13.
• Magnifying Lens Holder - Built-in provision for magnifying lens*,if  required. *Magnifying lens not included.
• Grind Mode - Comes standard with Grind Mode, meaning you can use one helmet for all your welding requirements - including weld preparation and clean-up.
• Lens Delay Control - Used to adjust the time for the lens to switch to clear state after welding. Useful in eliminating bright rays present in high amp applications. Adjusts from 0.1 second-min to 0.9 second-max.
• 4 Arc Sensors - Provides continuous arc sensing capability. Lens automatically switches from light state 4 to adjustable welding shades 9-13 when an arc is struck. Lens darkening reaction time 1/12,500 sec.
• Sensitivity Control - Sensitivity control makes the lens more responsive to different light levels in various welding processes. Use mid-range (2-3) sensitivity setting for most applications.
• 3 Year Warranty - Like all WIA products, this product is manufactured with quality in mind. Tested under stringent conditions, we provide a 3 year warranty for your peace of mind.



WIA AUST11095KG Austfil T-11 Self-shielded Flux Cored Wire - 0.9mm - 5kg Spool

The Austfil T-11 is suitable for welding of mild and galvanized steels, gates, frames, sheds, light structures and general fabrication.

Classification:

• AS/NZS ISO 17632-B - T49ZT11-1NA-H15
• AWS A5.20: E71T-11

Features:

• Self-Shielded Flux Cored Wire
• All Positional Welding
• Single Pass / Multi Pass Applications
• Full Slag Covering and Easy Slag Removal
• Shielding Gas not required

Specifications:

• Operational data:
  • Wire Size (MM) - 0.9mm
  • Welding Current Range (A) - 80 - 150A
  • Arc Voltage Range* (V) - 15 - 18V
    • *Welding Current DC - Voltage is determined by arc current and wire arc length. Welding currents and voltage shown are operational guides only
• Typical All Weld Metal Chemical Analysis:
  • C - 0.06
  • Mn - 0.60
  • Si - 0.05
  • S - 0.008
  • P - 0.012
  • Al - 1.22
• Typical All Weld Metal Mechanical Analysis

  • Yield Strength - 430 Mpa
  • Tensile Strength - 530 Mpa
  • Elongation - 24%
