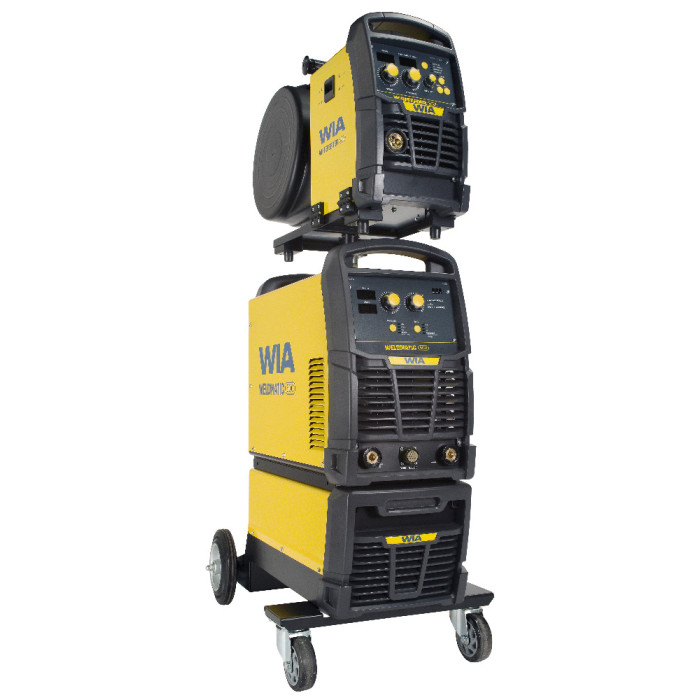

Weldmatic 500 MIG / Stick / TIG Welder Package
$5,499.00
SKU
CP145-1
The Weldmatic 500 is a powerful and robust multi-process machine built to perform for professional fabrication applications. Capable of MIG, TIG and Stick welding, it offers optimal weld characteristics that provide high quality results.
Featuring Digital Volt and Amp meters, the 500 allows for easy and precise set up by retaining last weld information. Perfect for a workshop it comes packaged with a separate wire feeder for extra flexibility. Built for tough Australian conditions, and manufactured with 3 years warranty, the Weldmatic 500 offers reliability and performance that’s second to none.
WIA CP145-1 Weldmatic 500 MIG / Stick / TIG Welder Package
Package Includes:
- Interconnecting Leads (10m)
- W67 4 Roll Drive Heavy Duty Wirefeeder
- Euro Gun Cable (3.6m) with Bernard Centerfire 0.9mm Tip
- Work Lead (10m) with Heavy Duty G Clamp
- Gas Regulator
- Industrial Twist Lock Electrode Holder (3m)
- Drive Rollers – 0.9/1.2 & 1.2/1.6mm V Groove 0.9/1.2 & 1.2/1.6mm Knurled
Features:
- Suitable Applications - Medium to Heavy Fabrication
- Weldable Materials - Steel, Stainless Steel and Aluminium
- 500 A three phase MIG, Stick & TIG welder
- 500 A at 40 V 60% Duty Cycle
- Digital Meters - Easy to read and easy to adjust parameters
- Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
- Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
- Spot Timer - Provides short weld times for repetitive spot welds
- Creep Mode - Provides slow wire speed until weld starts - ideal for aluminum starts
- Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 5kg and 15kg spools
- VRD (Voltage Reduction Device)
- IP21S rated
- Generator compatible – 35 kVa
Specifications:
- Primary Voltage - 380/415 VAC -50/60Hz
- Rated Primary Current - 32.5 Amps
- Max Primary Current - 40 Amps
- Recommended Generator Power - 35 kVa
- Supply Plug - 32 Amp
- IP Rating - IP21S
- Warranty - 3 Years
- Weight - 105k
- Standards Compliance - AS60974.1 & AS1674.2 (VRD)
MIG Specifications:
- Output Range - 30A/15.5V-500A/39V
- Rated Output @ 40°C (10min) -
- 500A/39V @ 60%
- 387A/33.4V @ 100%
- Wire Size Range - 0.6/0.8/0.9/1.2mm
- Material Thickness Range - Welds up to 12mm+ steel plate, single pass
Stick Specifications:
- Current Range - 25A/21V-500A/40V
- Rated Output @ 40°C (10min) -
- 500A/40V @ 60%
- 387A/35.5V @ 100%
TIG Specifications:
- Current Range - 15A/10.6V-500A/30V
- Rated Output @ 40°C (10min) -
- 500A/30V @ 60%
- 387A/25.5V @ 100%
| Model Number | CP145-1 |
|---|---|
| Brand | WIA |
