Weldmatic 356 MIG Welder Package
$5,699.00
SKU
CP147-1
The Weldmatic 356 is the ideal choice for medium fabrication workshops and comes equipped with Fan-on-Demand™ which will improve efficiency, reduce maintenance and provide a safer working environment. Packaged with a separate wire feeder it provides extra flexibility for a workshop set up and enables custom set up to suit the job including arc start, wire speed, burn back, spot time, creep mode, pre and post gas plus more!
Built with quality components for tough Australian conditions it comes with 3 years warranty, offering professional welders reliability and performance that’s second to none.

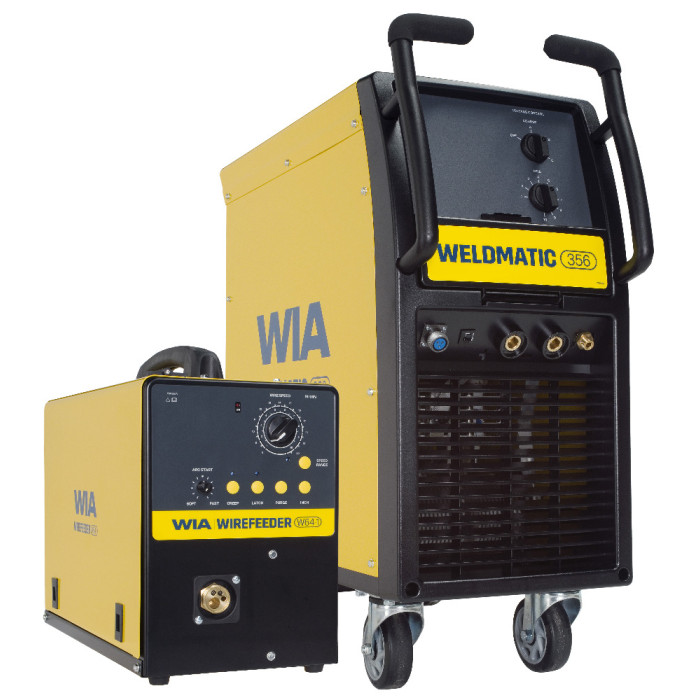

WIA CP147-1 Weldmatic 356 MIG Welder Package
Package Includes:
- W64-1 4 Roll Drive Wirefeeder
- Gas Regulator
- Interconnecting Leads (10m)
- Euro Gun Cable (3.6m)
- Work Lead (10m) Bernard™ Centerfire™ Tip (0.9mm)
- Drive Rollers: 0.9/1.2mm V Groove; 0.9/1.2mm Knurled (Gasless, flux cored)
Features:
- Suitable Applications - Workshops and Medium to Heavy Fabrication
- Weldable Materials - Steel, Stainless Steel and Aluminium
- 356 A three phase MIG welder
- 355 A at 31.8 V 40% Duty Cycle
- Fan-on-Demand™ Cooling Fan – Reduces noise, energy use and contaminates
- Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
- Arc Start - Modifies arc starting condition, wire accelerates at different speed depending on application
- Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
- Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
- Spot Timer –Provides short weld times for repetitive spot welds
- Creep Mode – Provides slow wire speed until weld starts - ideal for aluminium starts
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 5kg and 15kg spools
- IP21S rated
- Generator compatible – 16.5 kVa
Specifications:
- Primary Voltage - 415 VAC-50Hz
- Rated Primary Current - 15 Amps
- Max Primary Current - 23 Amps
- Recommended Generator Power - 16.5 kVa
- Supply Plug - 32 Amp
- IP Rating - IP21S
- Weight - 126kg
- Warranty - 3 Years
- Standards Compliance - AS60974.1 & AS1674.2 (VRD)
MIG Specifications:
- Current Range - 30A/15.5V-355A/31.8V
- Rated Output @ 40°C (10min) -
- 355A/31.8V @ 40%
- 290A/28.5V @ 60%
- 225A/25.3V @ 100%
- Wire Size Range -
- 0.6-1.6mm (Solid)
- 0.8-1.6mm (Cored)
- Material Thickness Range - Welds up to 12mm+ steel plate, single pass
| Model Number | CP147-1 |
|---|---|
| Brand | WIA |
