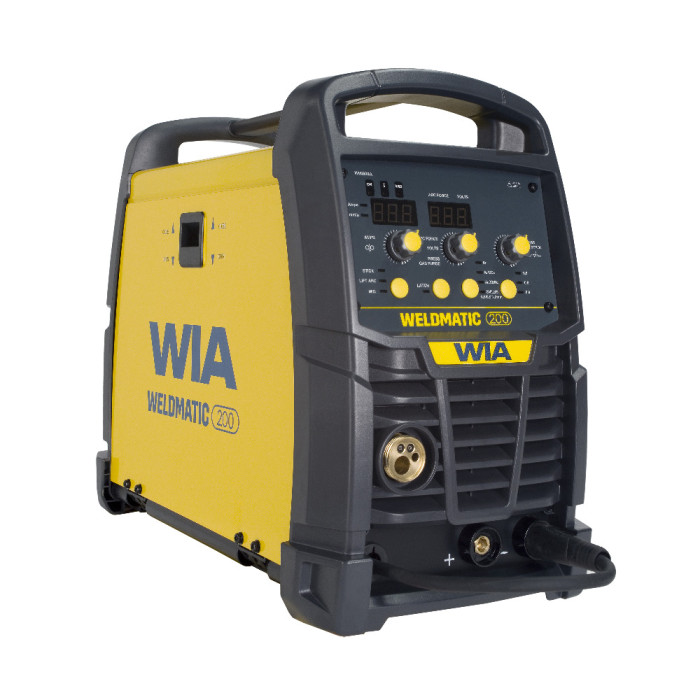

Weldmatic 200 MIG / Stick / TIG Welder Package

WIA CP150-1 Weldmatic 200 MIG / Stick / TIG Welder Package

Built with quality components and manufactured with 3 years warranty, the Weldmatic 200 delivers on reliability and performance making it the perfect portable choice for intermediate and professional welders.

Package Includes:

• Euro Gun Cable (3m)
• Work Lead (3m)
• Gas Regulator
• Drive Rollers 0.6/0.8mm V Groove; 0.9/1.2mm Knurled (Gasless)
• Tips (0.6/0.8/0.9/1.2mm)
• Industrial Twist Lock Electrode Holder (3m)
• Austfil T-11 Gasless Sample Wire (0.9mm)
• ES6 Steel Sample Wire (0.8mm)

Features:

• Suitable Applications - Light to Medium Fabrication, Repair and Maintenance, Farming, Automotive, Building & Construction
• Weldable Materials - Steel, Aluminium and Stainless Steel
• 200 A single phase MIG, Stick & TIG welder
• 200 A at 24 V 15% Duty Cycle
• Portable – Only 15kg
• Integrated wire feeder – Makes it compact and lightweight
• Digital Meters - Easy to read and easy to adjust parameters
• Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
• Arc Force – Provides a more stable arc and prevents electrode sticking
• Hot Start – For better, easier arc starting
• Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
• Suitable wires - Gas-shielded and gasless flux-cored wires
• Spool capacity - Takes 1kg and 5kg spools
• VRD (Voltage Reduction Device)
• IP21S rated
• Generator compatible – 12 kVa

Specifications:

• Primary Voltage - 240 VAC-50/60Hz
• Rated Primary Current - 14 Amps
• Max Primary Current - 36 Amps
• Recommended Generator Power - 12 kVa
• Supply Plug - 15 Amp
• IP Rating - IP21S
• Weight - 15kg
• Warranty - 3 Years
• Standards Compliance - AS60974.1 & AS1674.2 (VRD)

MIG Specifications:

• Output Range - 30A/15.5V-200A/24V
• Rated Output @ 40°C (10min) -
  • 200A/24V @ 15%
  • 100A/19V @ 60%
  • 77A/17.9V @ 100%
• Wire Size Range - 0.6/0.8/0.9/1.2mm
• Material Thickness Range - Welds up to 8mm steel plate, single pass

Stick Specifications -

• Current Range - 20A/20.8V-170A/26.8V
• Rated Output @ 40°C (10min) -
  • 170A/26.8V @ 15%
  • 85A/23.4V @ 60%
  • 66A/22.6V @ 100%

TIG Specifications -

• Current Range - 15A/10.6V-200A/18V
• Rated Output @ 40°C (10min) -
  • 200A/18V @ 15%
  • 100A/14V @ 60%
  • 77A/13.1V @ 100%
