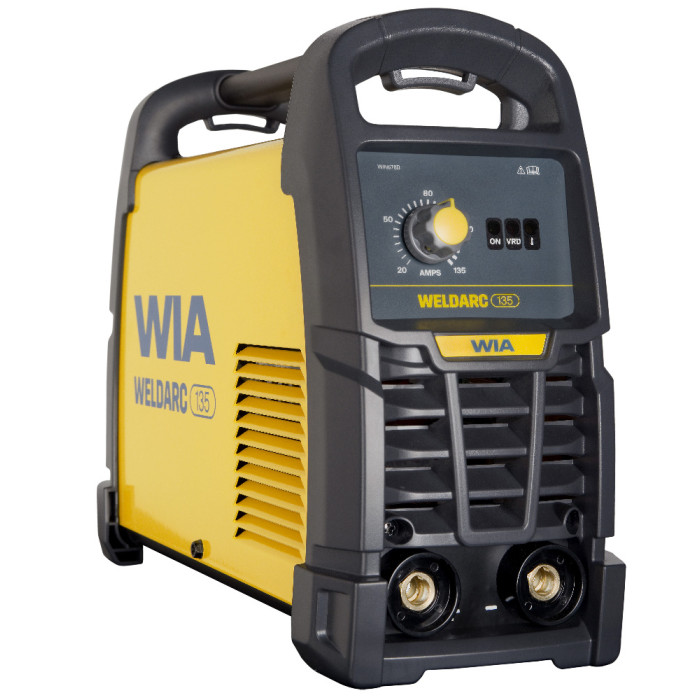

Weldarc 135 Stick Welder Package
$329.00
SKU
MC110-0
The perfect Stick welder if you’re just starting out, the Weldarc 135 is the smallest in the
WIA range. But don’t let the size fool you. Simple in its design, yet it offers professional
features including Arc Force, which allows the 135 to weld with ease and produce
quality results.
Manufactured to deliver, the Weldarc 135 is ideal for those looking for a well-priced
welder that offers reliability and performance that’s second to none.
WIA MC110-0 Weldarc 135 Stick Welder Package
Package Includes:
- Heavy duty work clamp (2m)
- Industrial twist lock electrode holder (3m)
- Padded shoulder strap
Features:
- 135 A single phase Stick welder
- 135 A at 25.4 V 20% Duty Cycle
- Portable – Only 4kg
- Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
- Arc Force – Provides a more stable arc and prevents electrode sticking
- Hot Start – For better, easier arc starting
- VRD (Voltage Reduction Device)
- IP21S rated
- Generator compatible – 7 kVa
- Weldable materials - steel, stainless steel and cast iron
- Suitable aplications - repair and maintence, farming and DIY projects
Specifications:
- Primary Voltage - 240 VAC-50/60Hz
- Rated Primary Current - 9.9 Amps
- Max Primary Current - 22.2 Amps
- Recommended Generator Power - 7 kVa
- Supply Plug - 10 Amp
- IP Rating - IP21S
- Weight - 4kg
- Warranty - 3 Years
- Standards Compliance - AS60974.1 & AS1674.2 (VRD)
Stick Specifications:
- Current Range -
- 20A/20.8V
- 135A/25.4V
- Rated Output @ 40°C (10min) -
- 135A/25.4V @ 20%
- 78A/23.1V @ 60%
- 60A/22.4V @ 100%
- Electrode Size Range - 2.0 - 3.2mm
- Material Thickness Range - Welds up to 6mm steel plate, single pass
| Model Number | MC110-0 |
|---|---|
| Brand | WIA |
