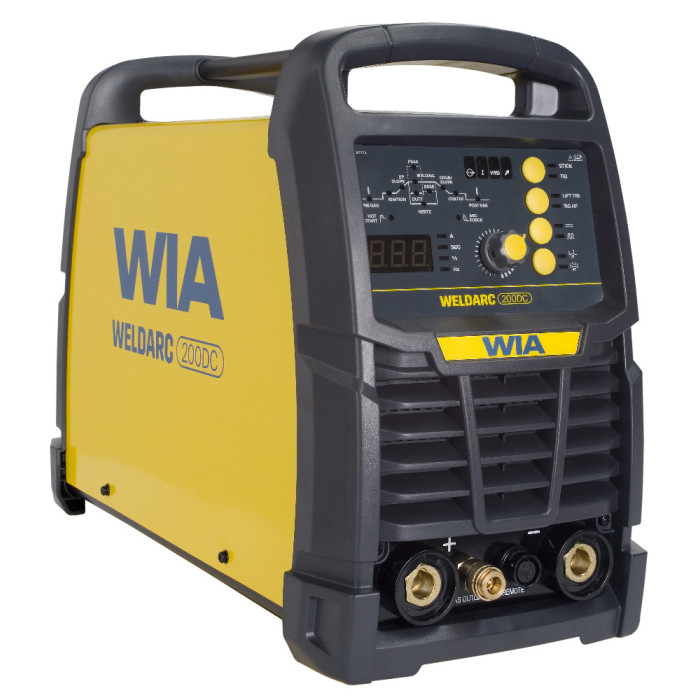

Weldarc 200 DC Stick / TIG Welder Package
$1,389.00
SKU
MC113-0
Get quality results with the Weldarc 200 DC Stick/TIG welder. For intermediate to welding professionals, HF Start and Pulse TIG capabilities provide easy non-contact arc starting and allows greater heat control of the weld pool, increases weld penetration and speed providing high quality weld results. Plus, it supports foot control adjustment for enhanced control capabilities.
WIA MC113-0 Weldarc 200 DC Stick / TIG Welder Package
Built with quality components and manufactured with 3 years warranty, the Weldarc 200 DC is an easy choice for welders looking for a well-priced professional grade Stick/TIG welder that doesn’t compromise on results.
Package Includes:
- Work Clamp (3m)
- Industrial Twist Lock Electrode Holder (4m)
- TIG Starter Kit
- TIG Torch (8m)
- Gas Hose
- Argon Gas Regulator
Features:
- Suitable Applications - Repair and Maintenance, Motor Sports Fabrication, Stainless Steel Fabrication, Food and Wine
- Weldable Materials - Steel, Copper and Stainless Steel
- 200 A single phase Stick & TIG welder
- 200 A at 18 V 30% Duty Cycle
- Portable – Only 12kg
- HF Start – For easy non-contact arc starting; Increases tungsten life; Reduces weld inclusions
- Pulse TIG – For greater heat control; Increases weld penetration, speed and quality
- Power Factor Correction – Smooths out the actual input current; Maximises efficiency when welding on long leads or from generators
- Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
- Fan-on-Demand™ Cooling Fan – Reduces noise, energy use and contaminates
- Arc Force – Provides a more stable arc and prevents electrode sticking
- Hot Start – For better, easier arc starting
- VRD (Voltage Reduction Device)
- IP23S rated – Provides extra protection in harsh environments
- Generator compatible – 10 kVa
Specifications:
- Primary Voltage - 240 VAC-50/60Hz
- Rated Primary Current - 14 Amps
- Max Primary Current - 25 Amps
- Recommended Generator Power - 10 kVa
- Supply Plug - 15 Amp
- IP Rating - IP23S
- Weight - 12kg
- Warranty - 3 Years
- Standards Compliance - AS60974.1 & AS1674.2 (VRD)
STICK Specifications:
- Output Range - 20A/20.8V-180A/27.2V
- Rated Output @ 40°C (10min) -
- 180A/27.2V @ 30%
- 127A/25V 60%
- 99A/24V @ 100%
TIG Specifications:
- Output Range - 10A/10.4V-200A/18V
- Rated Output @ 40°C (10min) -
- 200A/18V @ 30%
- 141A/15.6V @ 60%
- 110A/14.4V @ 100%
- Material Thickness Range - Welds up to 8mm steel plate, single pass
| Model Number | MC113-0 |
|---|---|
| Brand | WIA |
