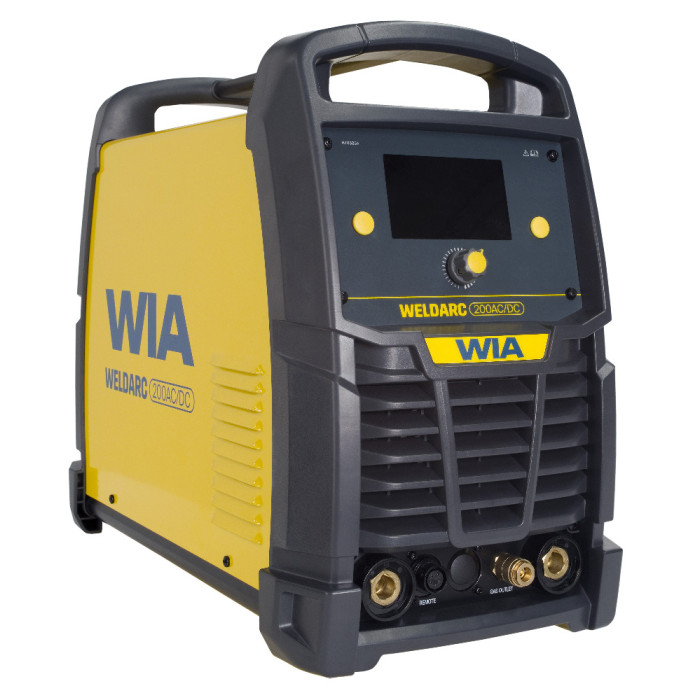

Weldarc 200 AC/DC Stick / TIG Welder Package

WIA MC114-0 Weldarc 200 AC/DC Stick / TIG Welder Package

Built with HF Start and Pulse TIG functionality, the Weldarc 200 AC/DC also provides easy non-contact arc starting and allows greater heat control of the weld pool, increases weld penetration and speed, providing high quality weld results. Plus, it supports foot control adjustment for enhanced control capabilities.

Built with quality components and manufactured with 3 years warranty, the Weldarc 200 AC/DC is an easy choice for those looking for a well-priced, professional grade Stick/TIG welder that doesn’t compromise on results.

Package Includes:

• Work Clamp (3m)
• Industrial Twist Lock Electrode Holder (3m)
• TIG Starter Kit
• TIG Torch (8m)
• Argon Gas Regulator Gas Hose

Features:

• Suitable Applications - Repair & Maintenance, Aluminium Boat Favrication, Motor Sports Fabrication
• Weldable Materials - Steel, Stainless Steel, Aluminium, Titanium, Copper
• 200 A single phase Stick & TIG welder
• 160 A at 26.4 V 30% Duty Cycle (Stick)
• Portable – Only 17kg
• LCD interface – Simple to navigate it offers quick and easy setup through pre-set parameters and memory selection
• AC TIG – For welding aluminium
• HF Start – For easy non-contact arc starting; Increases tungsten life; Reduces weld inclusions
• Pulse TIG – For greater heat control; Increases weld penetration, speed and quality
• Power Factor Correction – Smooths out the actual input current; Maximises efficiency when welding on long leads or from generators
• Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
• Fan-on-Demand™ Cooling Fan – Reduces noise, energy use and contaminates
• Arc Force – Provides a more stable arc and prevents electrode sticking
• Hot Start – For better, easier arc starting
• VRD (Voltage Reduction Device)
• IP21S rated
• Generator compatible – 10 kVa

Specifications:

• Primary Voltage - 240 VAC-50/60Hz
• Rated Primary Current - 11 Amps
• Max Primary Current - 20 Amps
• Recommended Generator Power - 10 kVa
• Supply Plug - 15 Amp
• IP Rating - IP21S
• Weight - 17kg
• Warranty - 3 Years
• Standards Compliance - AS60974.1 & AS1674.2 (VRD)

Stick Specifications:

• Output Range - 10A/20.4V-160A/26.4V
• Rated Output @ 40°C (10min) -
  • 160A/26.4V @ 30%
  • 114A/24.6V @ 60%
  • 88A/23.5V @ 100%

TIG Specifications:

• Output Range -

  • AC:15A/10.6V-200A/18V
  • DC:10A/10.4V-200A/18V
• Rated Output @ 40°C (10min) -
  • 200A/18V @ 30%
  • 142A/15.7V @ 60%
  • 110A/14.4V @ 100%
• Material Thickness Range - Welds up to 8mm steel or aluminium plate, single pass
