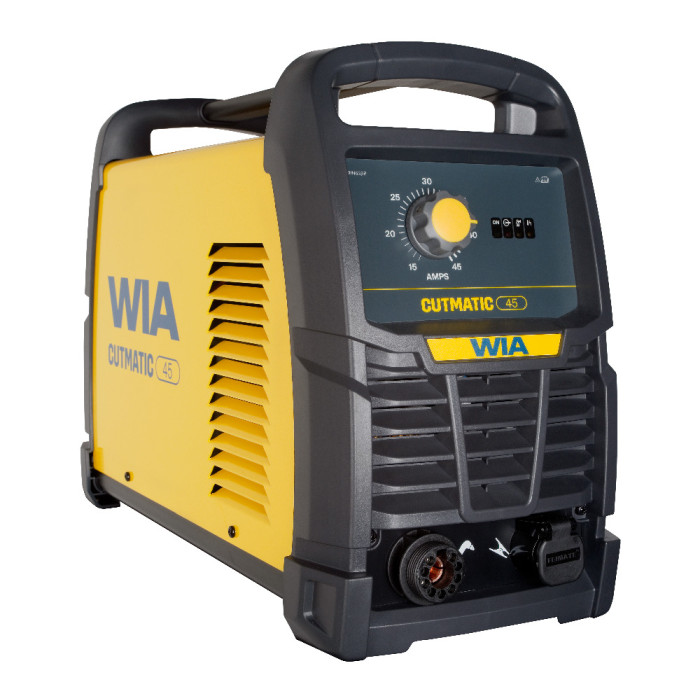

Cutmatic 45 Plasma Cutter Package
$1,589.01
SKU
MC115-0
From the workshop to on-site the Cutmatic 45 is highly portable and can go where you go. Capable of cutting mild steel, stainless steel and aluminium, its serious cutting capabilities can effortlessly clean cut up to 16mm and server cut up to 20mm. With up-to-date date technology, the Cutmatic 45 offers more than its competition, including power factor correction for maximum efficiency. Built with quality components and manufactured to deliver, you’ll get more than you pay for with the Cutmatic 45.
WIA MC115-0 Cutmatic 45 Plasma Cutter Package
Package Includes:
- Parker Surecut Torch (6m)
- Heavy Duty Work Clamp (4m)
- Electrode (1)
- 0.8mm Tips (1)
- 1.0mm Tips (1)
- Torch Cutting Guide (1)
Features:
- 45 A single phase plasma cutter
- Fitted with a 15 Amp plug
- Portable - Only 11kg
- Power Factor Correction – Smooths out the actual input current. Maximises efficiency when welding on long leads or from generators
- Plasma Torch with Pilot Arc Start - Designed for a safe and sound strike without high frequency
- Water and Air Filter - Removes water in the air. Increases torch tip life
- IP21S rated
- Generator compatible – 8 kVa
Specifications:
- Primary Voltage -240 VAC-50/60Hz
- Rated Primary Current - 14.2 Amps
- Max Primary Current - 22.5 Amps
- Recommended Generator Power -8 kVa
- Supply Plug - 15 Amp
- Standards Compliance - AS60974.1 & AS1674.2
- IP Rating - IP21S
- Weight - 11kg
- Warranty - 3 Years
Plasma Specifications:
- Current Range - 15-45 Amps
- Rated Output @ 40°C (10min) -
- 45A/98V @40%
- 28A/91.3V @100%
- Cutting Tip Size - 0.8-1.0mm
- Mild Steel Cutting Range -
- Clean cut 16mm
- Sever cut 20mm
- Stainless Steel Cutting Range -
- Clean cut 12mm
- Sever cut 16mm
- Aluminium Cutting Range
- Clean cut 10mm
- Sever cut 12mm
- Air Consumption - 115l/min
- Air Pressure - 90PSI/0.6MPA
| Model Number | MC115-0 |
|---|---|
| Brand | WIA |
