6500kg (6.5t) 22 x 25mm Hot Dipped Galvanised Screw Pin Dee Shackle
$26.90
SKU
241322P
These hot dipped galvanised screw pin dee shackles are manufactured by Beaver. Screw pin shackles are recommend for use in long-term or permanent applications, or where the load may slide on the pin, causing a rotation of the pin. Please note that all dimensions are nominal. Actual dimensions fall within the tolerances of AS 2741.

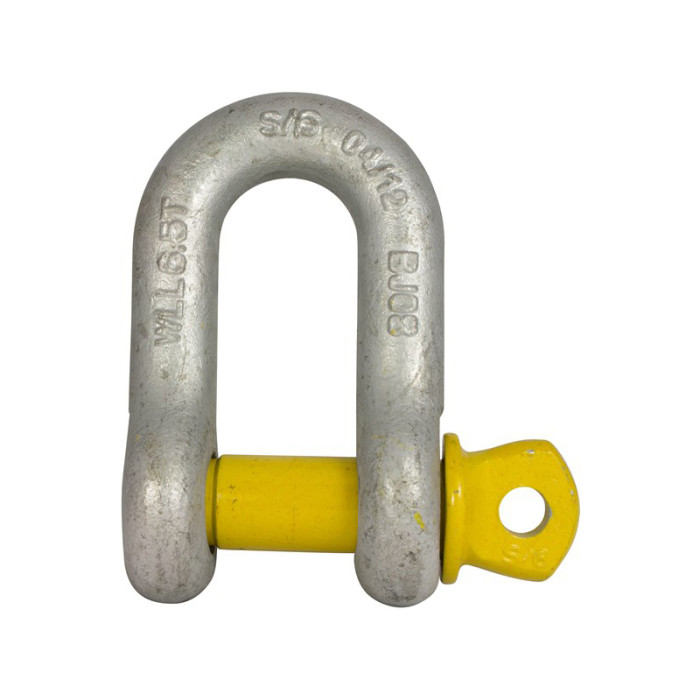

Beaver 241322P 6500kg (6.5t) 22 x 25mm Hot Dipped Galvanised Screw Pin Dee Shackle
MH2413P
Specifications:
- Size: 22mm x 25mm
- WLL: 6.5t
- Shackle Colour: Hot Dipped Galvanised
- Dimensions:
- Diameter - 22mm
- Pin Diameter (D) - 25mm
- Inside Width (W) - 37mm
- Inside Length (L) - 71mm
- Diamter Boss (e) - 54mm
| Model Number | 241322P |
|---|---|
| Brand | Beaver |
