1600kg (1.6t) 3S Industrial Manual Lever Blocks
$329.00
SKU
506160
The heavy duty Beaver lever blocks are a versatile lifting and tensioning device widely used in rigging, construction, and mining. The Beaver 3S industrual chain lever block mechanism and gears are enclosed in a robust all-steel compact shell. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.

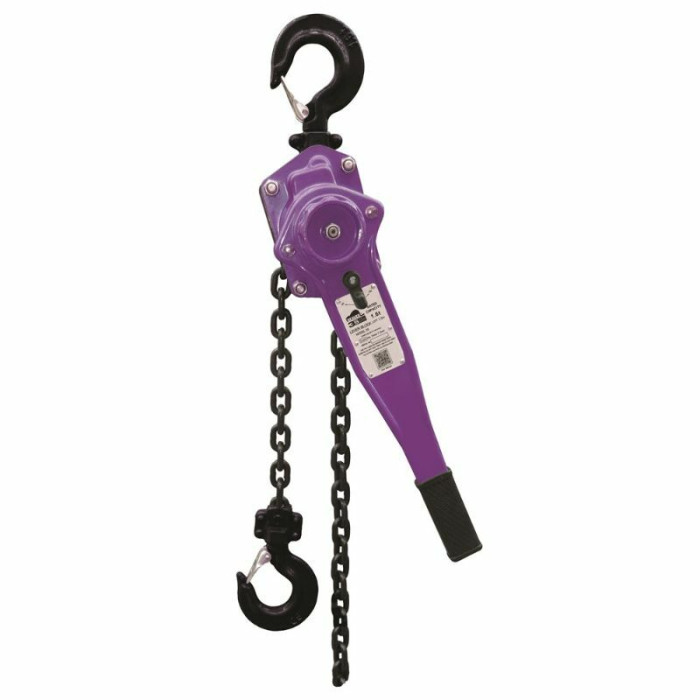

Beaver 506160 1600kg (1.6t) 3S Industrial Manual Lever Blocks
MH506
Specifications:
- Rated Capacity: 1.6t
- Colour Code: Violet
- Standard Lift:1.5m
- Test load: 22.5kN
- Effort on Lever to Lift Full Load: 240N
- No. Load Chain Falls: 1
- Load Chain Diameter: 8mm x 24mm
Every Beaver 3S industrial level block is operationally tested to its rated capacity and is supplied wtih a test certificate, relating to its stamped identification side plate. This lever block comlpies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.
- Size:
- A - 172mm
- B - 98mm
- C - 160mm
- D - 410mm
- E - 35mm
- H - 380mm
- Net Weight: 11kg
| Model Number | 506160 |
|---|---|
| Brand | Beaver |
