800kg (0.8t) 3S Industrial Manual Lever Blocks
$289.00
SKU
506080
The heavy duty Beaver lever blocks are a versatile lifting and tensioning device widely used in rigging, construction, and mining. The Beaver 3S industrual chain lever block mechanism and gears are enclosed in a robust all-steel compact shell. The load chain is made of high resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834. Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.

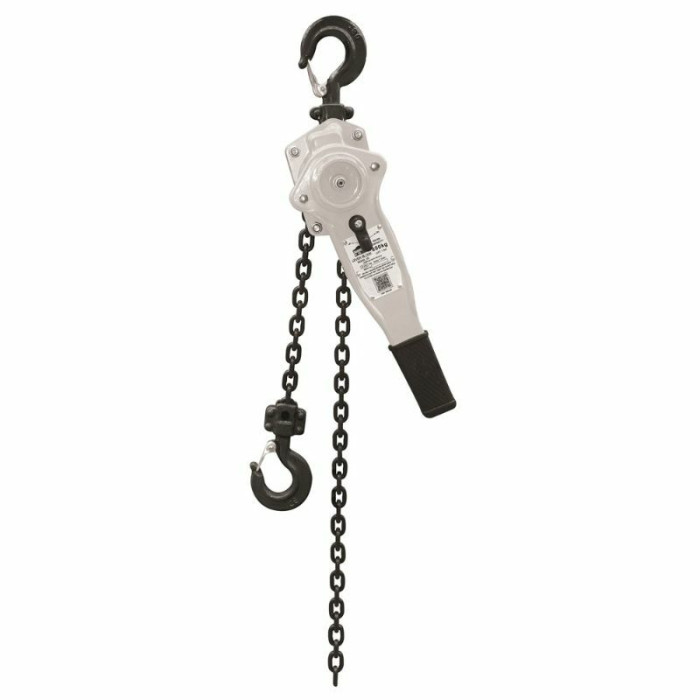

Beaver 506080 800kg (0.8t) 3S Industrial Manual Lever Blocks
MH506
Specifications:
- Rated Capacity: 0.8t
- Colour Code: White
- Standard Lift: 1.5m
- Test load: 11.3kN
- Effort on Lever to Lift Full Load: 140N
- No. Load Chain Falls: 1
- Load Chain Diameter: 6mm x 16mm
Every Beaver 3S industrial level block is operationally tested to its rated capacity and is supplied wtih a test certificate, relating to its stamped identification side plate. This lever block comlpies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.
- Size:
- A - 148mm
- B - 90mm
- C - 136mm
- D - 280mm
- E - 30mm
- H - 325mm
- Net Weight: 7kg
| Model Number | 506080 |
|---|---|
| Brand | Beaver |
