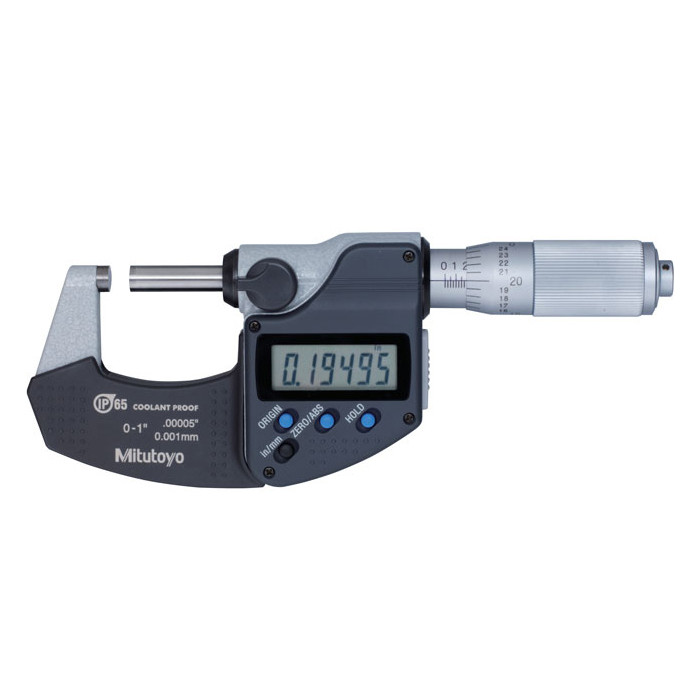

"DIGIMATIC MICROMETER 0-1"" W

Digimatic Micrometer 0-1in 0-25.4mm

Features:

• Twice as Long Battery Life as before and Drastic Improvement in Measurement Efficiency IP65 protection level, enabling use in environments exposed to cutting oil, etc
• Anti-corrosion treatment is required after use
• Measurement data output function is available with a water-resistant connection cable
• Auto power ON/OFF function. Certificate of inspection is included (50mm/2" or less range models) It is not the type used to obtain calibration certificates
• With a standard bar except for 0-25mm/0-1" model
• Supplied in fitted case. Plastic case up to 150mm/6", Wooden box over 150mm/6"

Specifications:

• Accuracy: Refer to the list of specifications
• Resolution: 0.001mm or .00005"/0.001mm
• Flatness: 0.3µm/.000012"
• Parallelism: 1µm/.00004" for models up to 50mm/2"
• 2µm/.00008" for models up to 100mm/4"
• 3µm/.00012" for models up to 175mm/7"
• 4µm/.00016" for models up to 275mm/11"
• 5µm/.0002" for models over 300mm/12"
• Measuring faces: Carbide tipped
• Display: LCD
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 1.2 years under normal use
• (8 months: over 100mm models)
• Dust/Water protection level: IP65
• Range: 0-1in 0-25.4mm
• Accuracy: ±.00005in

Function:

• Origin-set, Zero-setting, Automatic power on/off, Data hold, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error

Optional Accessories:

• 05CZA662: SPC cable with data switch (1m/40")
• 05CZA663: SPC cable with data switch (2m/80")
