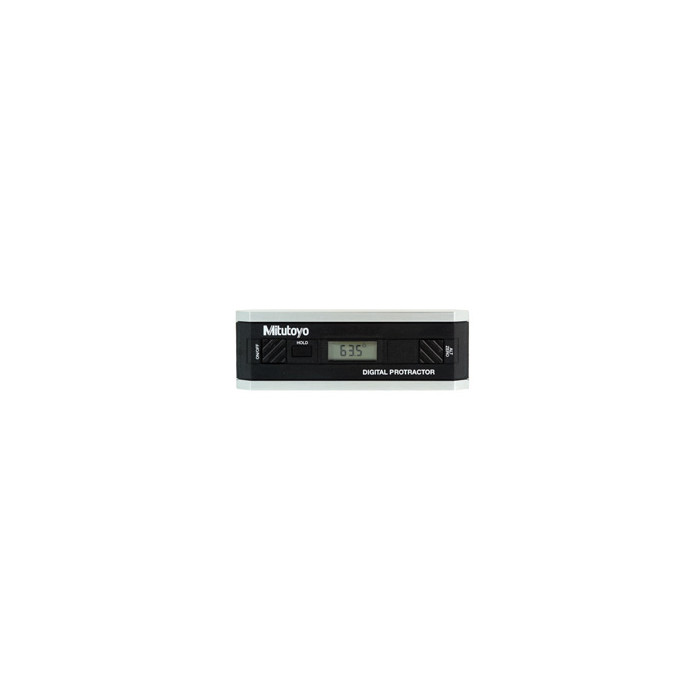

Mitutoyo Pro 3600 Protractor

Digital Protractor

These Digital Protractors present inclination values on an easy-to-read liquid crystal display. The measurements are generated by an electronic gravity sensor and processed by the latest low-power electronic circuit technology.

Features:

• Full 360° range (90° x 4).
• Machined aluminum frame.
• Alternate reference (zero).
• Reading hold.
• Simple calibration requiring no special fixtures.
• Display remains upright to view at all angles.(950-317, Pro 360 Model).
• RS232C output. (950-318 Pro 3600 Model).

Specifications:

• Model: Pro 3600
• Accuracy: 0.05° (0° to 10°), 0.1° (80° to 90°), 0.2° (10° to 80°)
• Battery Life: 500 Hrs. Standard 9-Volt Battery
• Cross Axis Error: Minimal
• Output: RS-232C Compatible
• Repeatability: ±0.05°
• Resolution: 0.01° (0° to 9.99°), 0.1° (10° to 90°)°
• Storage Temperature: -20-65°C -4-149°F
• Weight: 295g 10.4oz
• Operating Temperature: -5-50°C 23-122°F

Optional Accessories:

• 64PPP795 Magnetic base
• 50AAA983A RS-232C Output cable w/foot switch
