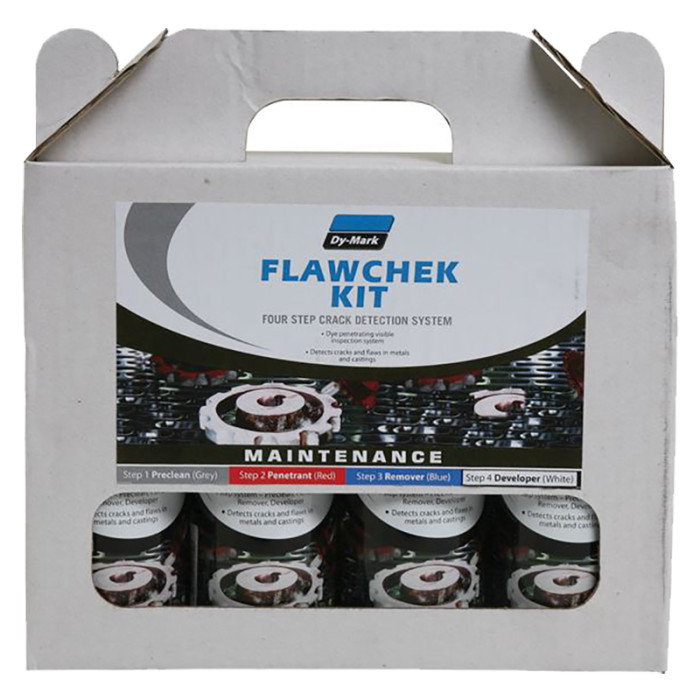

Flawchek 4 Part Inspection Kit 350g
The Flawcheck system is a method of non-destructive testing which will detect flaws on metal surfaces.
Dy-Mark 19013599 Flawchek 4 Part Inspection Kit 350g
Step 1 Preclean - It is essential to ensure that the part/area to be tested a clean, dry and free from all surfaces contamination (e.g. grease, oil, rust, and paint). Surface contaminants can cover a flaw, inhibiting the enterance of the dye. Spray the area to be inspected and wipe throughly with cloth. Allow clean surface to dry.
Step 2 Penetrant - Spray Penetrant Dye over the area that is to be inspected. Allow penetrant to dwell for 10 minutes. Dwell time should be extended in extremely cold conditions.
Step 3 Remover - Allow excess Penetrant to drain. Wipe over inspected surface with a dry cloth. Then spray Remover on another cloth and wipe surface to remove excess Penetrant. Allow surface to dry before using developer.
Step 4 Developer - Spray a light coat of the Developer over the area to be inspected, aoiding a heavy film. Leave Developer to dry and inspect parts for flaws after 2 - 3 minutes. If very fine flaws are suspected, the parts should be re-inspected after 20 minutes.
Features:
- Dye penetrating visible inspection system
- 4-step system – Preclean, Penetrant, Remover and Developer
- Detects cracks and flaws in metals and castings
- Fast, efficient and cost effective method
- Conforms to AS2062 TYPE 2 METHOD B
| Model Number | 19013599 |
|---|---|
| Brand | DyMark |
