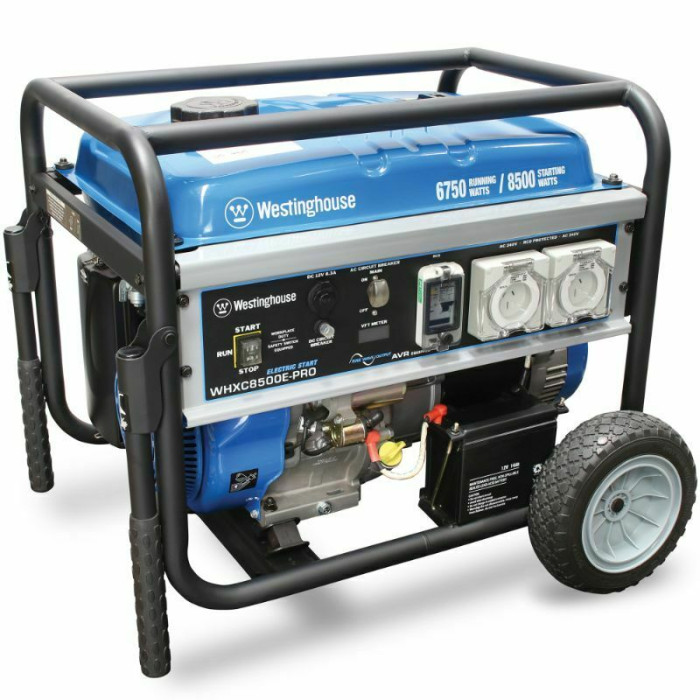

Generator 8500W Pro Series Electric Start – Petrol

Westinghouse WHXC8500E-PRO Generator

Features:

• Reliable Performance - High output and fuel efficient Westinghouse 420 cc 4-strokeoverhead valve petrol engine.
• Effortless Starting - Strain-free electric starting at the push of a button. Heavy duty 12 Volt battery included.
• Electrical Safety - RCD safety switch offers you WH&S mandated protection against electric shock.
• Quiet Operation - Oversized Pulse-Flo muffler and anti-vibration rubber mounts ensure low noise output.
• Long Running - Extended run time from the long range 25 litre fuel tank with integrated gauge and strainer.
• Stable Power - Digital AVR controlled sine wave ouput for precise and stable electricity supply.
• Premium Features - Copper wound alternator, full steel roll frame, fold-down handles and Never-Flat wheels.
• Easy to Use - Yellow-coloured touch points guide you to the controls required for normal operation.
• Plug and Play - Everything you need is in the box. Just add petrol. Minor assembly required.

Specifications:

• Engine

• Type: 1-Cylinder, 4-Stroke, Overhead Valve, Air Cooled
• Displacement (cc): 420
• Maximum Speed (rpm): 3,000
• Oil Capacity (mL): 1,000
• Low Oil Shutdown: Yes
• Spark Plug: Torch F6RTC
• Fuel: Unleaded Petrol
• Fuel Tank Capacity (L): 25
• Fuel Gauge: Yes
• Starting Methods: Electric and Recoil
• Battery: 12V, Maintenance Free
• Hour Meter: Yes
• Run Time @ 50% Output (hr): 13.1
• Noise Level @ 100% Output: 80dB(A) @ 7m

• Dimensions

• Length (mm): 735
• Width (mm): 700
• Height (mm): 655

• Weight

• Dry (kg): 94
• Wet (kg): 113

• 240 Volt AC Electrical

• Voltage (V): 240
• Frequency (Hz): 50
• Number of Phases: 1
• Continuous Running Power* (W): 6,750
• *Rated output at 1.0 power factor.

• Maximum Starting Power (W): 8,500
• Continuous Running Current (A): 28.1
• Alternator Windings: Copper
• Voltage & Waveform Control: Digital Automatic Voltage Regulator Sine Wave Output
• Receptacles: 2 x 15A, IP66
• Overload Protection: Circuit Breaker
• RCD Safety Switch: Yes
• Digital VFT Meter: Yes
• Electrical Enclosure: IP23

• 12 Volt DC Electrical

• Voltage (V): 12
• Maximum Current (A): 8.3
• Maximum Power (W): 100

Warranty Protection

• 2-year domestic use warranty to safeguard your investment (conditions apply).
