Electrodes Stainless Steel Hyperarc 309L 3.2mm - 2kg
$159.01
SKU
U63015
Barcode
9333521006628
The HYPERARC 309L is a Stainless Steel Electrode specifically designed for welding 309 and 309L stainless steels as well as joining dissimilar metals such as mild steel to stainless steel. It is also used in joining dissimilar stainless steels in the 300 series.

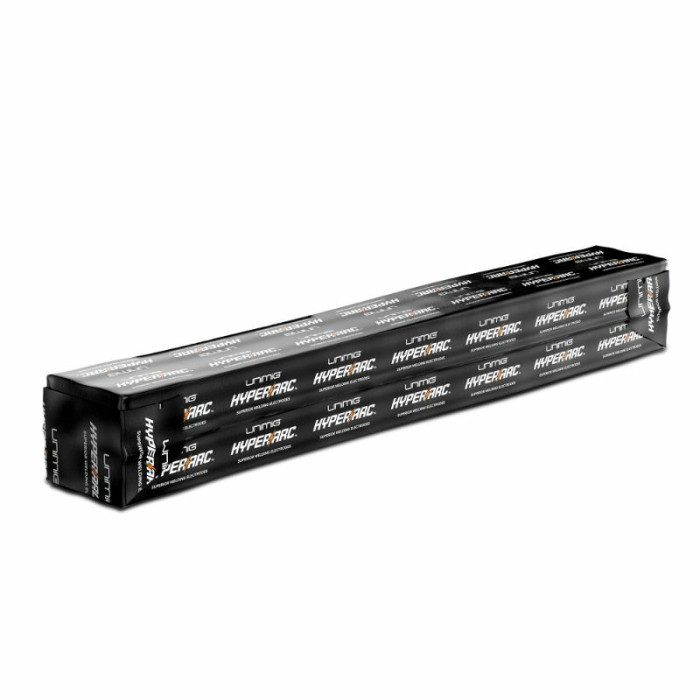

UNIMIG U63015 Electrodes Stainless Steel Hyperarc 309L 3.2mm - 2kg
Features:
- Excellent arc stability
- High penetration
- Less spatter
- Concentrated arc
- Typical Applications:
- Welding mild steels to stainless steels
- Buffering prior to hard facing
- Welding dissimilar 300 series stainless steels as well as some 400 series
Classification:
- AS/NZS 4854: ES309L-16
- AWS/ASME SFA5.4: E309L-16
Specifications:
- Recommended Current - AC & DC+
- Mechanical Analysis -
- Yield Stress - 480 MPa
- Tensile Strength - 560 MPa
- Elongation - 38%
- Operating Data -
- Electrode Size - 3.2mm
- Electrode Length - 350mm
- Current Range - 85-120A
- Chemical Composition (%) -
- C - 0.044%
- Mn - 0.925%
- Si - 0.737%
- P - 0.033%
- S - 0.021%
- Weight - 2kg (Vacuum Seal)
| Model Number | U63015 |
|---|---|
| gtin | 9333521006628 |
| Brand | Unimig |
