5V 5.2Ah Li-ion Cordless Crossline Series II Green Beam Laser
$499.00
SKU
012-LX22G
Barcode
9342649001743
The Imex LX22G crossline laser features ultra-bright green beam technology with one horizontal and one vertical line, plumb up and plumb down. Series II features an all-new sturdy magnetic bracket enabling quick release of the laser without screws to hold it in place. The new 5.2Ah lithium battery pack gives you plenty of run time to keep up with your busy day on site, featuring USB-C fast charge. Locally calibrated and tough to withstand the knocks and bumps on site, the LX22G Series II has rubberised housing for a comfortable, non-slip grip.

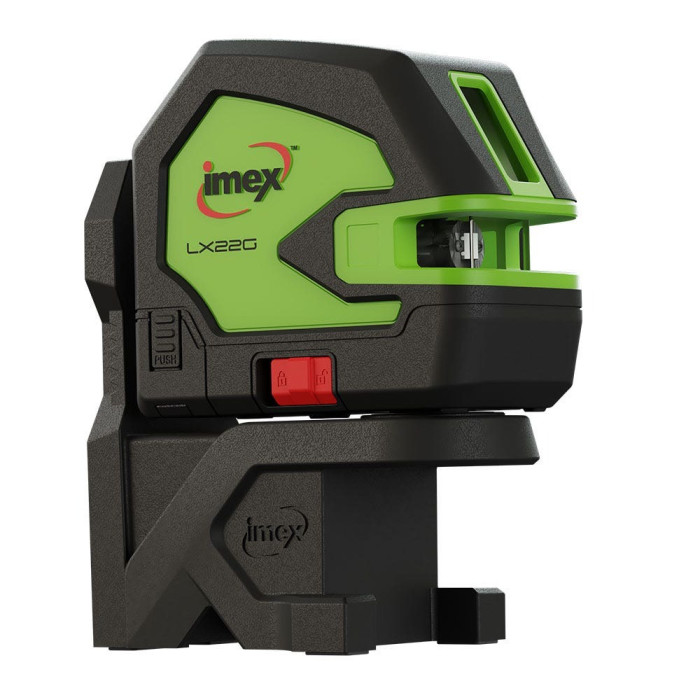

Imex 012-LX22G 5V 5.2Ah Li-ion Cordless Crossline Series II Green Beam Laser
Includes:
- 1 x Lithium battery/alkaline batteries
- 1 x Magnetic Bracket
- 1 x Operating manual
- 1 x Carry case
Features:
- Quick-release magnetic bracket – no screws to hold the laser in place
- 2Ah lithium battery pack – swaps to all LX Series II models.
- Rugged housing with non-slip rubberised moulding
- High visibility green beam
- Plumb up, plumb down and 2 horizontal dots
- 1 horizontal, 1 vertical line
- Pulse mode for detector
- Self-levelling
Specifications:
- Self-levelling range: 4° ± 1
- Out of level indication: Laser blinks on/off
- Laser lines: 1 vertical, 1 horizontal line
- Laser Dots: Plumb up/down, 3 @ 90° horizontal
- Laser accuracy: ±3mm @10m
- Laser class: Class 2
- Laser wavelength: 520 ± 10 nm
- Laser distance – lines: 10m light-dependent
- Laser distance – dots: 50m light-dependent
- Laser distance with optional detector – lines: 50m
- Laser fan angle: lines H 180° V 130°
- Power source: 5.2 Ah lithium-ion
- Charging type: USB-C
- Run time – all beams and dots: 6 hrs
- Control switch: 1 button, pendulum lock
- IP Rating: IP54
- Operating temperature: -10° to +50°C
- Storage temperature: -20° to +70° C
Warranty:
- 3 Years Warranty covered by IMEX Australia
| Model Number | 012-LX22G |
|---|---|
| gtin | 9342649001743 |
| Brand | Topcon |
