MXL4 Precision Locator and MXT4 Transmitter Combo Kit

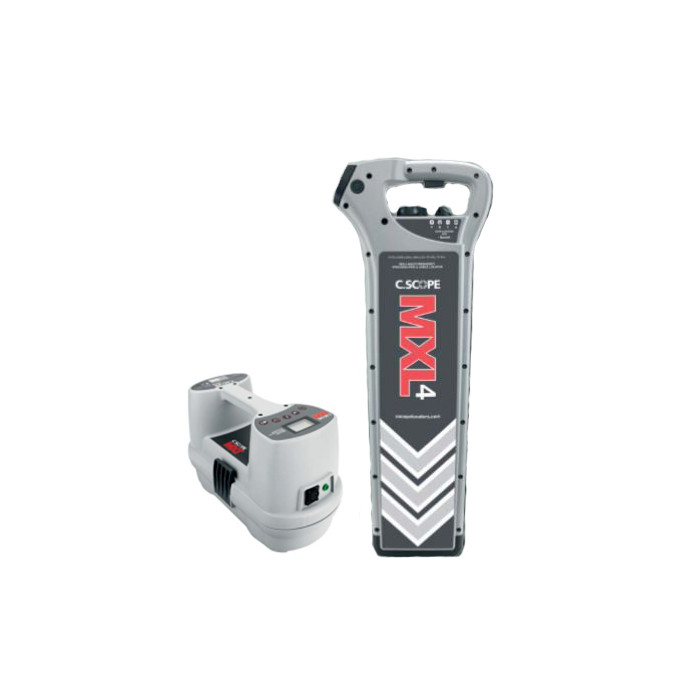

MXL4 Precision Locator with MXT4 Transmitter Combo Kit - MXL4D-MXT4D

MXL4 Precision Locator

The MXL4 Precision Locator represents a significant advance in cable detecting and tracing capabilities. Two versions of the MXL4 are available; the MXL4-D which has full data logging capability, and the MXL4-DBG which has full data logging capability, Bluetooth™ connectivity and GPS. Innovative new features have been introduced enabling the MXL4 Locator and MXT4 Transmitter to provide high-end precision performance and a far more flexible approach to pipe and cable location.

Features:

• Power Mode
• Radio Mode
• Transmitter Mode:
  • Simultaneous 33+131kHz signal detection for utility avoidance
  • 33kHz signal detection for all purpose tracing and utility avoidance
  • 131kHz for optimum detection of short length, small diameter or unearthed cables
  • 8kHz signal detection for tracing over longer distances
  • Ultra-low 512Hz signal detection for specialist tracing
  • Ultra-low 640Hz signal detection for specialist tracing
• All Scan Mode
• Accurate Depth Indication
• Signal Current Measurement
• Overload Protection
• Alarm Zone
• Peak Hold
• Dynamic Swing Sensor
• Automatic Daily Self-Test
• Data Logging of all Locator activity
• Data Transfer by USB (Bluetooth option)
• In-Build GPS position logging (optional)
• Connectivity to Survey level GPS products (option)
• High resolution Liquid Crystal Display
• No periodic Calibration required
• Product Validation Certificate available

Specifications:

• Controls:
  • On/Off Switch: Spring loaded trigger switch under handle
  • Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; T. Transmitter Mode; A. AllScan Mode
  • Sensitivity Control
  • Depth Measurement Button. Push button for live display of depth
  • Current Measurement Button. Pushbutton for live display of Transmitter current
  • Frequency Select Button. Pushbutton for Transmitter Mode frequency selection
• Audio Indication: Removable and user replaceable loudspeaker module
• Visual Indication, Multi-segment Liquid Crystal Display indicating:
  • Signal Strength
  • Mode selected
  • AlarmZone
  • Battery Condition
  • Self-Test Indicator
  • In Transmitter Mode, Frequency selected; Depth Measurement; Signal Current Measurement
  • GPS signal detected (MXL4-DBG only)
  • Bluetooth™ activated (MXL4-DBG only)
• Data Logging, Internal capacity for storing over 12months of data (in normal use) logged once per second. Data logged includes:
  • Time/Date
  • Mode Sensitivity Level
  • Received Signal Level
  • Frequency Depth
  • Signal Current Measurement
  • Self-Test Result
  • Swing Indicator
  • GPS position (MXL4-DBG only)
• Bluetooth: Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)
• GPS: GPS/QZSS/GLONASS/SBAS
• Data Connector: Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
• Self-Test: Automatic Daily Self-Test
• Swing Indicator: Audio beep to indicate incorrect use of the Locator
• Transmitter Mode Frequencies: Simultaneous 131,072Hz and 32,768Hz; 131,072Hz, 32,768Hz; 8,192Hz; 640 and 512Hz
• Construction: Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
• Weight (including batteries): 2.65kg
• Dimensions: 720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
• Performance:
  • Locate Accuracy: better than 10% of depth
  • Depth Accuracy: ±5% @ 1m (3’3”)
  • Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
  • Line Depth Resolution: 0.1m (0.4”)
  • Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
  • Sonde Depth Resolution: 0.1m (0.4”)
  • Current Measurement: 0.01mA to 100mA
• Battery Type: Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
• Battery Life: 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
• IP Rating: 65

MXT4 Transmitter

The MXT4 offers three alternative ways to apply a Signal Generator signal:

Direct Connection allows specific pipes or cables to be individually traced, identified and their depths measured. The use of Signal Clamps, Signal Injectors and Direct Connection leads make this mode the most effective method for pinpointing pipes and cables.

If it is difficult or inconvenient to use Direct Connection, then the Wraparound technique can be utilised to successfully energise a street or car park lighting cable.

Induction allows the Signal Generator to induce a detectable and traceable signal to previously unknown, undetected or inaccessible underground metal pipes or cables.

Features:

• One Watt 4-level adjustable Power Output
• Six Signal Outputs:
  • Simultaneous 33+131kHz
  • 512Hz Signal
  • 640Hz Signal
  • 8kHz Signal
  • 33kHz Signal
  • 131kHz
• Pulsed or Continuous Output Signal
• Three Signal Application Techniques:
• Direct Connection / Wraparound / Induction
• Automatic Daily Self-Test
• Data Logging of all Transmitter activity
• Data Transfer by USB
• High resolution Liquid Crystal Display
• No periodic Calibration required
• Product Validation Certificate available
• In-built Accessory Tray

Specifications:

• Controls by push button:
  • On/Off
  • Power Level: Cycles through four available power levels
  • Frequency: cycles through six available output frequencies
  • Pulse/Continuous Output: toggles between pulse or continuous output using one push button
  • Audio Output: toggles between loud, muted and silent audio output using one push button
• Audio Indications
  • Audio Feedback on button push
  • Audio pitch drops with increasing load current in Connected Mode
  • Audio pitch changes with power level in Induced Mode
  • Audio output pulses to indicate Pulsed Mode
  • Low battery indicated by interrupted Audio and output signal
• Visual Indication - Multi-segment Liquid Crystal Display indicating:
  • Output Frequency
  • Pulse Mode
  • Continuous Mode
  • Battery Condition
  • Output Level (barograph)
  • Speaker Mute
  • Self-Test Result
• Data Connector: Standard USB Mini B connector. USB 2.0 Compatible
• Self-Test: Automatic Daily Self-Test and manual Self-Test function
• Output:
  • Induced = 131,072Hz and 32,768Hz; 131,072Hz, 32,768Hz and 8,192Hz
  • Connected = 131,072Hz and 32,768Hz; 131,072Hz, 32,768Hz; 8,192Hz; 640 and 512Hz
  • Carrier Pulse Frequency: 7.5Hz (pulsed mode)
• Connected Mode:
  • Connection Mode automatically selected when lead is plugged into socket
  • Maximum Output Voltage (open circuit): 30V rms
  • Maximum Output Current (short circuit): 65mA rms
  • Maximum Power: 1W into 400Ω load
• Construction:
  • Case moulded from high impact plastic.
  • Designed to withstand 1m (3’3”) drop onto a hard surface
  • Incorporates clip on accessory storage compartment
• Weight (including batteries, Connection Leads and Earth Stake): 3.4kg
• Dimensions (with Accessory Tray fitted): 360mm x 180mm x 230mm (14.1” x 7” x 9”)
• Battery Type: Internal 4 x ‘D’ (LR20) cells (either alkaline non-rechargeable or NiMH rechargeable)
• Battery Life: up to 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
• IP Rating: 65
