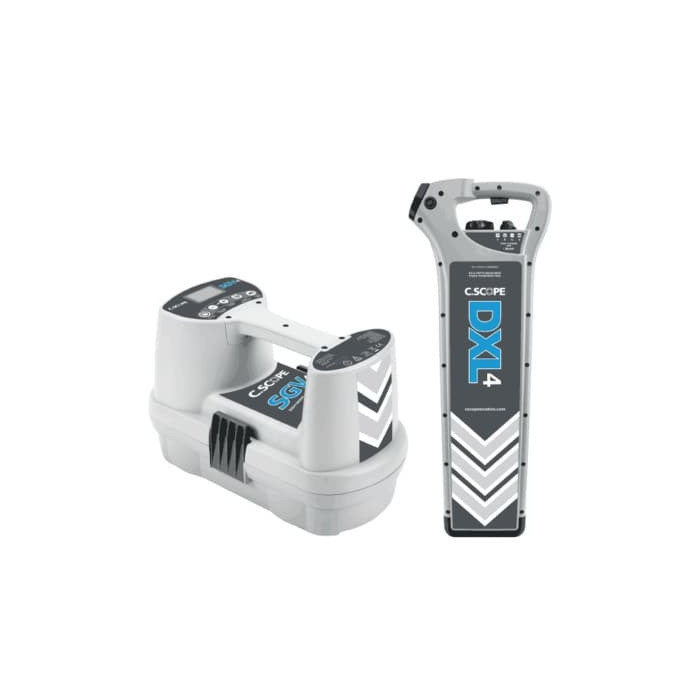

CSCOPE DXL4 Cable/Pipe Locator System Receiver Wand

The DXL4 has a number of features designed to help reduce the risk of cable strikes, such as a built-in Automatic Daily Self-Test, which checks the locator is working to its optimum before use at the start of each day of use. This protects the operator from unknowingly using a faulty safety product.

Applications:

• Locates all metallic services
• Locates power & comms cables
• Locates retic and small control wires
• Locates metal pipes and services
• Ground clearing before digging
• Tracing services and depth measurement

Features:

• Power Mode - Radio Mode.
• Generator Mode - Combined 33+131kHz frequency detection improves utility detection.
• All Scan Mode & Accurate Depth Indication
• Automatic Noise Rejection & Dynamic Swing Sensor.
• Automatic Daily Self-Test with Validation Certificate. Read more about ADST.
• Optional Data Logging of all Locator activity.
• High resolution Liquid Crystal Display indicating:
• Battery condition - Signal strength
• Mode selected - - Automatic Daily Self-Test result
• Shallow Cable Depth Alert
• Three-year Warranty (conditions apply).
• Fully weatherproof design to IP65.

Specifications:

• Product Dimensions: 720mm x 280mm x 65mm
• Weight:
• 6kg incl. batteries.
• 4kg excl. batteries.
• Batteries:
• Internal 8 x AA' (LR6) alkaline batteries typically giving up to 40 hours intermittent use at 20°C.
• Compatible with NiMH rechargeable batteries.
• Temperature Range: -20°C to +50°C
• IP Rating: IP65
• Approvals: CE

SGV4 Signal Generator

The C.Scope SGV4 is a One Watt dual-frequency (33+131kHz) Signal Generator with in-built Data Logging. Designed for use with a CXL4 or DXL4 Cable Avoidance Tool.

Features:

• One Watt 4-Level adjustable Power Output
• Simultaneous 33+131kHz Signal
• Pulsed or Continuous Output Signal
• Three Signal Application Techniques:
  • Direct Connection / Wraparound / Induction
• Automatic Daily Self-Test
• Data Logging of all Signal Generator activity
• Data Transfer by USB
• High Resolution Backlit Liquid Crystal Display
• No periodic Calibration required
• Product Validation Certificate available
• In-build Accessory Tray

Specifications:

• Controls by push button control as follows:
  • On/Off
  • Power Level: 4 available power levels via Increase and Decrease Power buttons
  • Pulse/Continuous Output: toggles between pulse or continuous output using one push button
  • Audio Output: toggles between loud, muted and silent audio output using one push button
• Audio Indications
  • Audio Feedback on button push
  • Audio pitch drops with increasing load current in Connected Mode
  • Audio pitch changes with power level in Induced Mode
  • Audio output pulses to indicate Pulsed Mode
  • Low battery indicated by interrupted Audio and output signal
• Visual Indication, Multi-segment Liquid Crystal Display indicating:
  • Output Frequency
  • Pulse Mode
  • Continuous Mode
  • Battery Condition
  • Output Level (barograph)
  • Speaker Mute
  • Self-Test Result
• Data Connector: Standard USB Mini B connector. USB 2.0 Compatible
• Self-Test: Automatic Daily Self-Test and manual Self-Test function
• Output:
  • Induced = 131,072Hz and 32,768Hz
  • Connected = 131,072Hz and 32,768Hz
  • Carrier Pulse Frequency: 7.5Hz (pulsed mode)
• Connected Mode:
  • Connection Mode automatically selected when lead is plugged into socket
  • Maximum Output Voltage (open circuit): 28V rms
  • Maximum Output Current (short circuit): 65mA rms
  • Maximum Power: 1W into 400Ω load
• Construction:
  • Case moulded from high impact plastic
  • Designed to withstand 1m (3’3”) drop onto a hard surface
  • Incorporates clip on accessory storage compartment
• Weight including batteries, Connection Leads and Earth Stake: 3.4kg
• Dimensions (with Accessory Tray fitted): 360mm x 180mm x 230mm (14.1” x 7” x 9”)
• Battery Type: Internal 4 x ‘D’ (LR20) cells (either alkaline non-rechargeable or NiMH rechargeable)
• Battery Life: up to 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
• IP Rating: 65
