Micrometer A

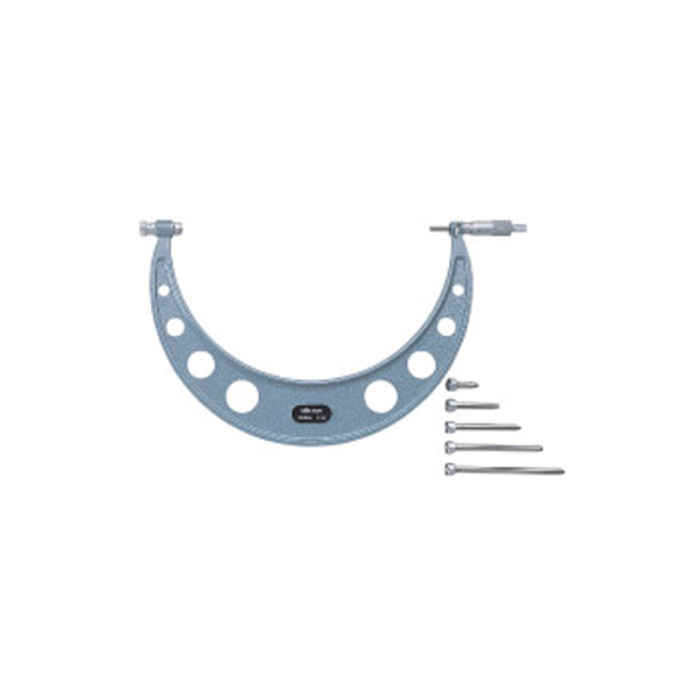

Outside Micrometers Interchangeable Anvils 0-100mm

Features:

• IP65 water/dust protection 340 series models with a range up to 12in/300mm
• Wide measuring range with interchangeable anvils
• With a Ratchet Stop for constant force
• Supplied with zero-setting standards bar for each range
• With SPC output (Series 340)
• Supplied in fitted wooden case

Specifications:

• Accuracy: ±(4+R/75)im, R=max. range (mm)
• [.00016" ±.00004 (L/3)"] L = Max Range (Inch)
• Resolution: 0.001mm or .0001"/0.001mm
• (340-351-10: .00005"/0.001mm)
• Graduation: 0.01mm
• Flatness: 0.6µm/.000024" for models up to 300mm/12"
• 1µm/.00004" for models over 300mm/12"
• Parallelism: 2µm/.00008" for models up to 75mm/3"
• 3µm/.00012" for models up to 150mm/6"
• (2+R/100)µm for models over 150mm, R=max.
• range (mm)
• [.00008" ± .00004 (L/4)"] L= Max range (inch)
• Measuring faces: Carbide tipped
• Display: LCD
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 1.2 years under normal use
• Dust/Water protection level: IP65
• Digital models Analog models
• Range: 0-100mm
• Intechg Anvils: 0,25,50,75mm
• Mass: 0.79kg
