Stealth 1200 CNC Plasma Cutting Table

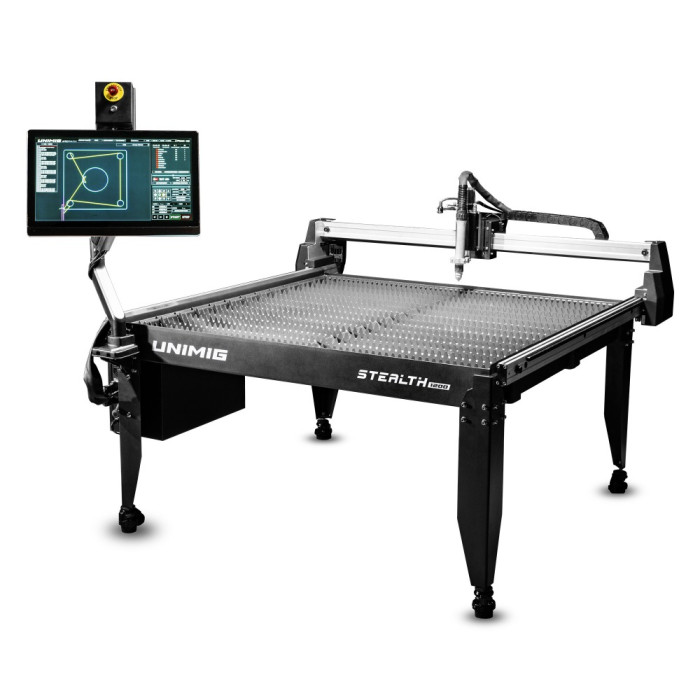

UNIMIG U11097 Stealth 1200 CNC Plasma Cutting Table



Introducing the Stealth 1200 and Stealth 2400 CNC Plasma Cutting tables by UNIMIG, designed to revolutionise your metal cutting experience.

Packed with a range of features, the Stealth CNC tables cater to both novice and experienced users. The intuitive user interface and easy-to-use touch screen simplify the CNC cutting process, allowing newcomers to quickly master the entire process. Advanced functionalities, like the automatic torch height control and adjustable sighting laser, offer seasoned professionals the tools they need to execute complex tasks with ease.

Unlike other CNC tables that require you to build them yourself, the Stealth CNC tables arrive mostly assembled and are pre-calibrated for UNIMIG machines. That way you’ll spend less time piecing it together and more time cutting.

These state-of-the-art tables feature a robust construction that guarantees durability and precision for every project. Crafted from professional-grade high-quality materials, both the Stealth 1200 and 2400 provide exceptional reliability and ease of use, making them the perfect choice for demanding environments.



Features:

MINIMAL ASSEMBLY REQUIRED

The Stealth 1200 and 2400 arrive near fully assembled and are pre-calibrated for rapid and precise deployment. This significantly reduces the time typically required for assembly and calibration of CNC systems.

BUILT IN WATER BED

The built-in water bed on the Stealth CNC table works to absorb fumes and sparks, giving you a cleaner workspace. With laser welded joints, the water bed is completely leak-free. It comes with two ball valve controlled drainage points with standard hose fittings for quick and easy draining. Additionally, the tables come with laser-cut mild steel slats, and the slat slots mean you can easily replace slats that become warped or damaged.

ADJUSTABLE SIGHTING LASER

Each Stealth CNC table is equipped with an adjustable offset sighting laser, ensuring precise alignment and eliminating the guesswork for pierce locations and plate alignment. No need for expensive add-on accessories, the Stealth CNC tables come fully equipped with all necessary features right from the start, providing you with a clear, constant visual of where the cut will start every time.

TRUE CUT SIZE

Midigate material wasteage with a true 1.2x1.2m half-sheet or 1.2x2.4m full-sheet cut size. The gantry will travel 1.23x1.22m on the Stealth 1200 CNC, and 1.23 x 2.44m on the Stealth 2400 CNC, so you can guarantee you’ll get the full size of the table to cut across.

LOW MAINTENANCE RACK & PINION

The rack and pinion systems on the X & Y axes provide consistent and precise linear movement. Made from hardened steel, they’re resistant to wear and deformity, prolonging their lifespan and minimising the need for maintenance. The rack’s teeth are straight cut, which distributes the load uniformly across the tooth face and contributes to their precision and reliability. Plus, their inverted position helps protect them from dust, chips, and other contaminants, preventing downtime.

ADJUSTABLE LEVEL CASTER FEET

Easily move the table using the swivel caster wheels and achieve easy and precise table level across most surfaces with the adjustable levelling feature on the wheels.

AUTOMATIC TORCH HEIGHT CONTROL

This system continuously monitors and adjusts the torch height in real time to maintain the optimal height while cutting over wavy or warped material. By maintaining the optimal height, you get a consistent cutting quality, minimal dross, increased consumable life and faster cutting speeds.

UNIMIG ARC PATH CNC CONTROL SOFTWARE

The 21-inch touchscreen computer comes mounted on a fully adjustable arm and pre-installed with our in-house, custom-designed UNIMIG Arc Path CNC Control software. Arc Path accepts G-Code Design files, or alternatively, you can plug in a USB or a shared network folder and load your own files. We’ve also included CAM nesting software powered by FLCAM that accepts DXF files. Maximise Your Production

RELIABLE AUSSIE SUPPORT

Your Stealth CNC table includes exclusive access to our expert technical support team. Whether you need quick troubleshooting to get back up and running or assistance with a specific program, UNIMIG is here to help.

AUTOMATIC COLLISION DETECTION & LIMITER SWITCHES ON ALL AXES

With limiter switches on all axes and an automatic collision detection system, the Stealth tables use sensors, software algorithms, and real-time data processing to detect and prevent potential collisions and stop them from exceeding their predefined range of motion.

MAXIMISE YOUR PRODUCTION

Let the Stealth CNC tables handle the heavy lifting so you can increase your productivity. The Stealth CNC tables allow you to produce more parts and projects eciently. Optimise your cuts and nest parts on full sheets to minimise loading time and reduce material waste.

ADDITIONAL FEATURES

• Extruded Aluminium Axes Rails
• Dual Hybrid Stepper Motor Driven Gantry
• Quad Bearing Roller & Stainless Steel Guide Rails
• Precision Ball Screw Z-axis Drive
• Waterproof Quick System Connectors



UNIMIG ARCPATH CNC CONTROL SOFTWARE

Introducing our CNC Control software, Arc Path. Designed in Australia to meet the rigorous demands of both Australian fabrication shops and CNC operators alike, this software seamlessly integrates with the STEALTH 1200 and 2400 CNC Plasma Cutting Systems, providing a robust and versatile solution for all your cutting needs.

The CNC Control software features a touch screen interface for quick and intuitive control, allowing users to navigate effortlessly through its powerful functionalities. For those who prefer traditional methods, the software also supports standard mouse operation.

Arc Path is packed with powerful tools that streamline cut preparation and significantly reduce both time and material wastage, optimising your cutting processes for maximum eciency.

TOOL PANEL
Quickly edit your existing design using our powerful and convenient tools. Satisfied with the changes? You have the option to overwrite the original design or save it as a new one.
- Scale - Rotate - Plate Angle Adjustment - Pattern Array - Edit G-Code - Revert Changes - Zero Orientation

CUT PARAMETERS
A database of pre-configured settings for the most common material types and thicknesses, tailored for use with UNIMIG Plasma cutters, has been installed to ensure you have workable settings without the need for costly testing. You can also create your own parameters based on your individual cutting preferences.

KERF COMPENSATION
Quickly adjust the kerf compensation based on your  consumables on the fly. This allows you to achieve precise  cuts without the need to alter your design files.

EASY CUT SIGHTING
Arc Path features several tools that aid in both sighting the cut position and determining how much material the cut will use.

• LASER OFFSET - Replace the torch position with the laser position with a single press.
• FRAME TEST - Shows you the perimeter square for your active design file.
• DEMO MODE - Run the cut job like normal without firing the plasma torch. This allows you to spot potential issues before wasting material.

SHAPE LIBRARY
With 99 different shapes, Arc Path can quickly perform cuts of various commonly used lines, shapes, or calibration cuts. The shapes are fully configurable, including lead-ins and lead-outs.

FILE MANAGER
Using the Windows operating system, you can easily share files via the network or with common USB sticks to move between PCs. The file manager in Arc Path lets you access your files just as you would on any PC. You can also duplicate, delete, rename, and move files as needed.

JOG MODES

• TOGGLE - Press and hold to move
• CONTINOUS - Press and release to move
• STEP - Press to move a pre-set distance

JOB CONTROL PANEL
With Arc Path, you can easily pause an active cut job, rewind the cut, or move forward along the cut path. You can also specify a particular hole or line for the torch to move to.
