EVOLVE AC/DC Module

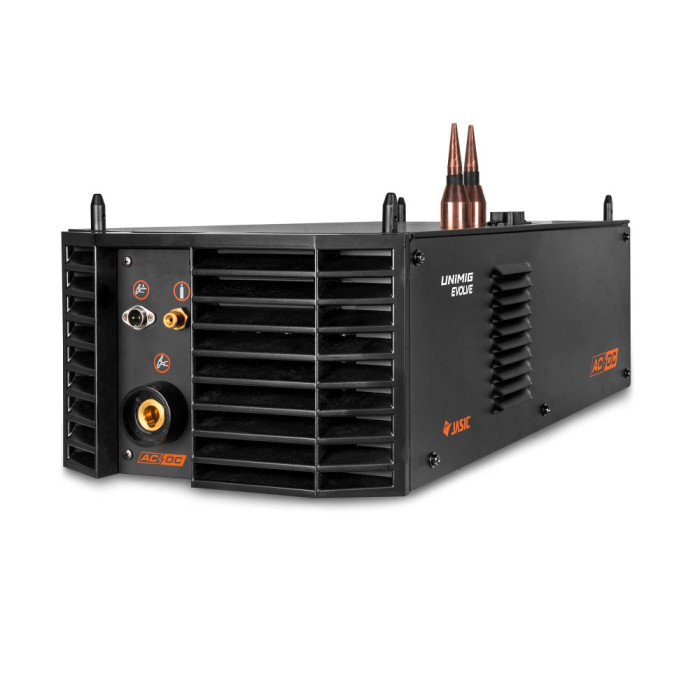

UNIMIG U11147 EVOLVE AC/DC Module

The AC/DC module enhances your MIG machine by adding high-frequency AC & DC TIG capabilities, advanced AC MIG settings, and improved heat input with cleaning action typically reserved for AC TIG.

Features:

• Single & Double Pulse MIG: Reduces the heat and minimizes spatter, without compromising penetration.
• 100+ Synergic Programs: Select your metal, wire size, and gas, and you’re ready.
• 5” LCD Touch Screen: The large touchscreen display is clear, with an easy-to-navigate interface.
• Digital MIG Torch: Adjust your amps, current, and voltage right on the MIG torch itself.
• AC MIG: You can get even more control over your aluminium MIG welds by using alternating current (AC). The heat input is provided by AC, and the cleaning action is usually reserved for AC TIG.
• AC Welding Speed: The advanced AC Welding Speed increases efficiency. By setting the rate at which the wire is deposited during the negative portion of the AC cycle, you can adjust your welding speed while maintaining your desired arc length.
• AC/DC TIG: Weld every kind of metal. Because it can run on Alternating Current (AC) you’re able to weld aluminium as well as mild and stainless steel on Direct Current (DC).
• High-Frequency TIG: Maximize your results from start to finish. A high-frequency torch can start an arc without contacting the workpiece, reducing the risk of contaminating the tungsten or the weld. It also means you get access to the entire TIG weld cycle, including pre-and post-gas and up-and-down slope parameters.
• Foot Pedal: Enjoy greater control and precision with our optional foot control accessory. This handy feature allows you to easily adjust your TIG amperage on the fly, without interrupting your torch movement.
• Maximum AC Amperage: Set the maximum current of the positive side of the AC cycle the machine can reach. By reducing the amperage of the positive portion of the cycle, the negative portion works to compensate, allowing for a more penetrative weld and reduced risk of tungsten melting.
• Mixed TIG: Experience the best of both worlds. Mixed AC/DC combines the efficiency of AC and the penetration of DC- TIG in one weld. With it, you get faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.

Specifications:

• Protection class: IP23S
• Insulation class: H
• Dinse connector: 35/50
• Standard: AS 60974.1
• Suitable material: TIG – Aluminium, magnesium, zinc alloys, mild steel, stainless steel, copper, silicon bronze, titanium

Warranty:

• 5 Years Warranty Covered by UNIMIG
