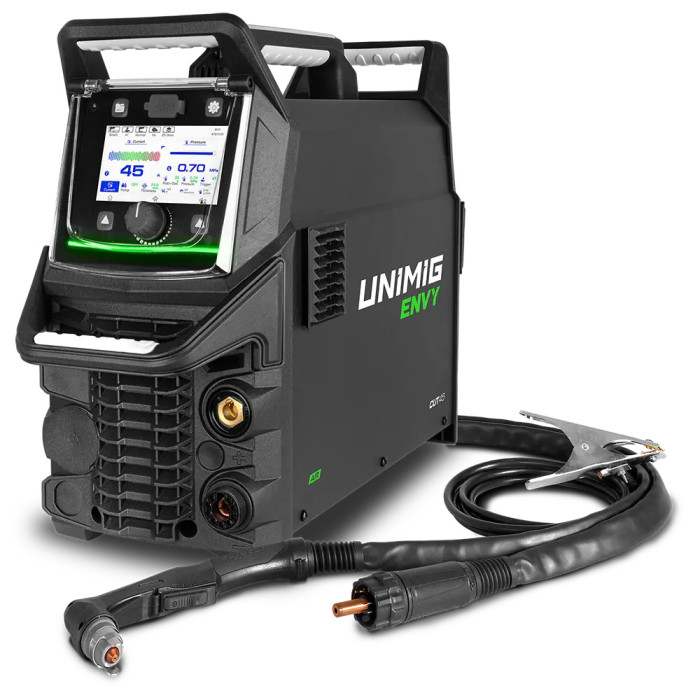

UNIMIG U11604 ENVY CUT 45 AIR Plasma Cutter

UNIMIG U11604 ENVY CUT 45 AIR Plasma Cutter

In the box:

• ENVY CUT 45 AIR Plasma Cutter
• 6m SC80 Plasma Torch
• 4m 300A Earth Clamp & Lead
• Operating Manual

Features:

• Smart-Set Programs - The easiest way to set up for a plasma cut, simply select your cutting type, material type and thickness, and you’re good to go!
• Cutting Capacity - Get a 20mm clean cut and a severance cut of 25mm on mild steel. Get up to a 18mm clean cut on stainless steel. Get up to a 14mm clean cut on aluminium.
• Cutting Modes - Cut through solid metal plate on any material. With the perforated cutting mode, you can cut materials like grating or mesh without interruption. Switch to gouging consumables to efficiently remove defects, welds, or pre-existing metal from your workpiece.
• CNC Connectivity - Switch from handheld to automated cutting whenever you need. The CNC interface lets you connect a CNC torch and run the machine on a cutting table with precise, repeatable control.
• Automatic Air Pressure Control - The machine regulates its own air pressure internally, so you do not need to adjust your compressor. The digital regulator delivers highly accurate, consistent airflow for cleaner starts and more reliable cuts.
• Pilot Arc Start - Strike the arc without touching the workpiece. Pilot arc start lets you cut through paint, rust or scale with ease and gives you better control on uneven surfaces. Because the tip does not need to drag, your consumables last longer and your starts stay consistent.
• Smart Fan Technology - The fan runs only when needed, reducing noise, cutting power use and limiting the dust drawn into the machine. This keeps internal components cleaner and helps extend the overall life of the unit.
• Job Memory - The job memory function allows you to enter and store cut parameter settings. Cut parameters can be further adjusted and stored as required. A total of 100 jobs can be memorised and stored for recall.
• Air Test - Check that your plasma cutter is running at peak performance. The air test ensures that your compressor is connected and that the air pressure is dialed in to produce the best cuts.
• Generator Compatible - Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 10kVA for this machine.

Specifications:

• Primary Input Voltage - 240V Single-Phase
• Supply Plug - 15A
• Ieff (A) - 14.5A
• Imax (A) - 26.5A
• Air Flow Draw (L/min) - 190-245
• Air Flow Pressure –
  • 65.27-87.02 psi
  • 4.5-6.0 bar
  • 0.45-0.6 MPa
• Open Circuit Voltage (OCV) - 380.0
• Protection Class - IP21S
• Insulation Class - H
• Minimum Generator (kVA) - 10.0
• Dinse Connector - 35/50
• Standard - AS 60974.1
• Warranty - 5 Years
• Dimensions (LxWxH) - 665 x 220 x 425mm
• Weight (kg) - 23.10kg
• Plasma Specifications:
  • Plasma Cut Current Range - 20-45A
  • Plasma Cut Duty Cycle @ 40°C -
    • 30% @ 45A
    • 60% @ 32A
    • 100% @ 25A
  • Mild Steel Cut Thickness - 20mm
  • Mild Steel Severance Thickness - 25mm
  • Stainless Steel Cut Thickness - 18mm
  • Aluminium Cut Thickness - 14mm
  • Copper Cut Thickness - 8mm
