9500kg (9.5t) 29 x 32mm Yellow Pin GS Screw Pin Anchor Bow Shackle
$55.00
SKU
242329
These yellow pin Grade S screw pin shackles are manufactured by Beaver, and comply to AS 2741. Screw pin shackles are used mainly for non-permanent applications. The Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.

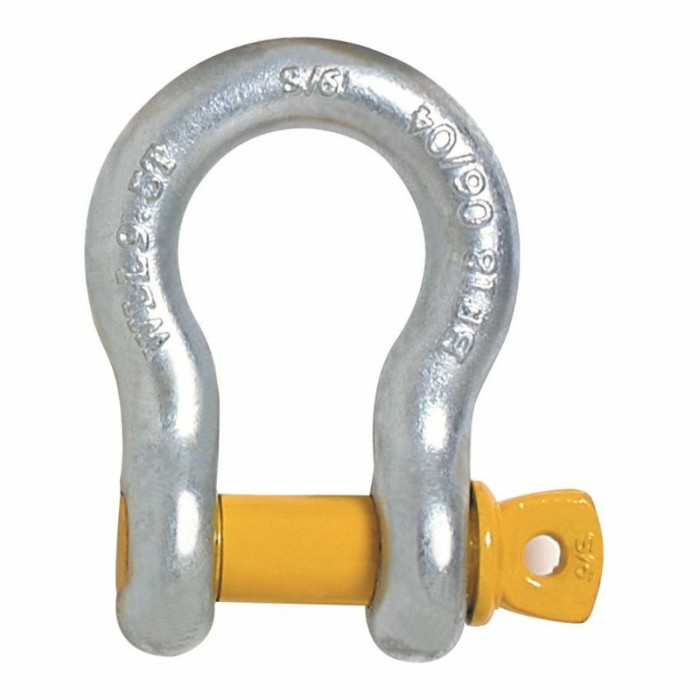

Beaver 242329 9500kg (9.5t) 29 x 32mm Yellow Pin GS Screw Pin Anchor Bow Shackle
MH2423
Specifications:
- Size: 29mm x 32mm
- WLL: 9.5t
- Type: Grade S
- Shape: Bow
- Closing Method: Screw
- Weight: 3.28kg
- Dimensions:
- Diameter - 29mm
- Pin Diameter (D) - 32mm
- Inside Width (W) - 46mm
- Inside Length (L) - 108mm
- Width of Bow (B) - 74mm
- Diameter Boss (F) - 67mm
| Model Number | 242329 |
|---|---|
| Brand | Beaver |
