12000kg (12t) 32 x 35mm Yellow Pin GS Screw Pin Anchor Bow Shackle
$79.00
SKU
242332
These yellow pin Grade S screw pin shackles are manufactured by Beaver, and comply to AS 2741. Screw pin shackles are used mainly for non-permanent applications. The Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.

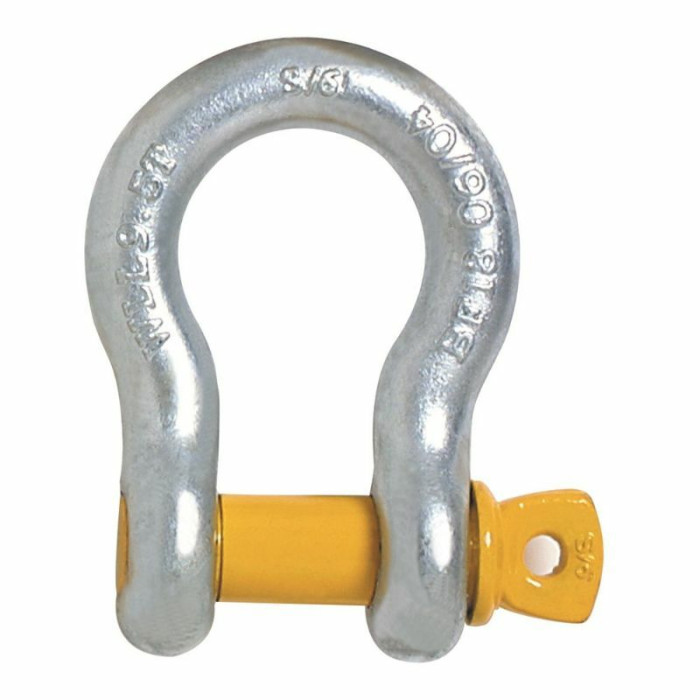

Beaver 242332 12000kg (12t) 32 x 35mm Yellow Pin GS Screw Pin Anchor Bow Shackle
MH2423
Specifications:
- Size: 32mm x 35mm
- WLL: 12t
- Type: Grade S
- Shape: Bow
- Closing Method: Screw
- Weight: 4.51kg
- Dimensions:
- Diameter - 35mm
- Pin Diameter (D) - 52mm
- Inside Width (W) - 119mm
- Inside Length (L) - 83mm
- Width of Bow (B) - 83mm
- Diameter Boss (F) - 76mm
| Model Number | 242332 |
|---|---|
| Brand | Beaver |
