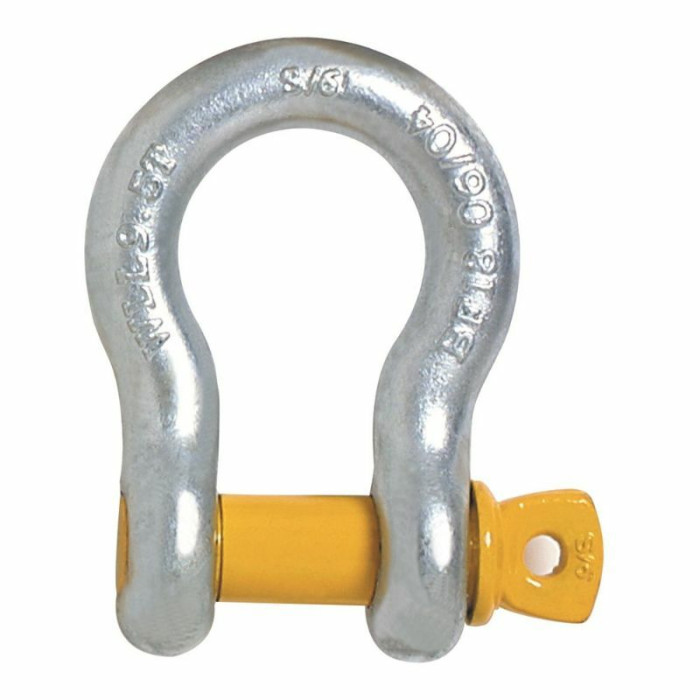

13500kg (13.5t) 35 x 38mm Yellow Pin GS Screw Pin Anchor Bow Shackle
$109.00
SKU
242335
These yellow pin Grade S screw pin shackles are manufactured by Beaver, and comply to AS 2741. Screw pin shackles are used mainly for non-permanent applications. The Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.
Beaver 242335 13500kg (13.5t) 35 x 38mm Yellow Pin GS Screw Pin Anchor Bow Shackle
MH2423
Specifications:
- Size: 35mm x 38mm
- WLL: 13.5t
- Type: Grade S
- Shape: Bow
- Closing Method: Screw
- Weight: 5.43kg
- Dimensions:
- Diameter - 35mm
- Pin Diameter (D) - 38mm
- Inside Width (W) - 57mm
- Inside Length (L) - 133mm
- Width of Bow (B) - 92mm
- Diameter Boss (F) - 84mm
| Model Number | 242335 |
|---|---|
| Brand | Beaver |
