Electrodes Dissimilar Metals Hyperarc 312L 3.2mm - 2kg

UNIMIG U63020 Electrodes Dissimilar Metals Hyperarc 312L 3.2mm - 2kg

Features:

• Excellent arc stability
• High penetration
• Less spatter
• Concentrated arc
• Applications:
  • Welding mild steels to stainless steels
  • Used for buffering prior to hard facing
  • Repairs and Maintenance

Classification:

• AS/NZS 4854: ES312L-16
• AWS/ASME SFA5.4: E312-16

Specifications:

• Recommended Current - AC & DC+
• Mechanical Analysis -
  • Yield Stress - 655 MPa
  • Tensile Strength - 750 MPa
  • Elongation - 23%
• Operating Data -
  • Electrode Size - 3.2mm
  • Electrode Length - 350mm
  • Current Range - 75-115A
• Chemical Composition (%) -
  • C - 0.092%
  • Mn - 0.915%
  • Si - 0.849%
  • P - 0.025%
  • S - 0.037%
  • Ni - 9.9%
  • Cr - 29%
  • Mo - 0.052%
  • Cu - 0.2%

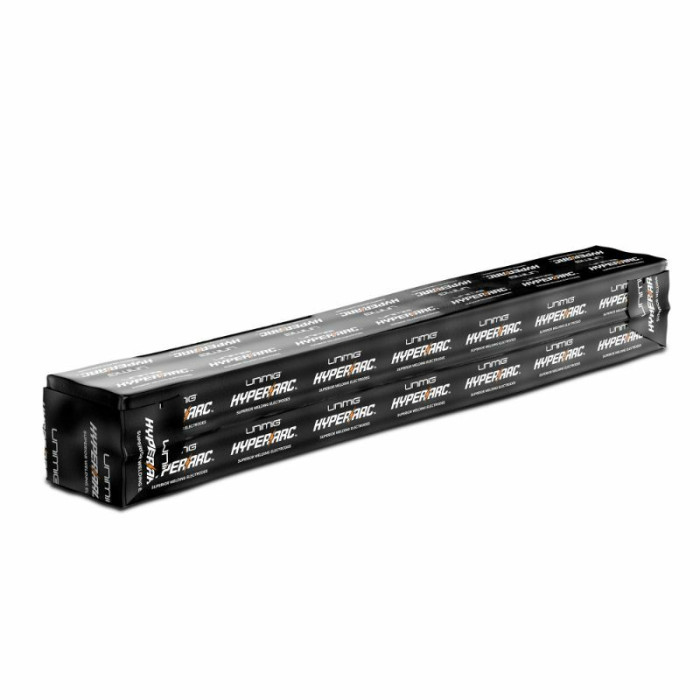

• Weight - 2kg (Vacuum Seal)
