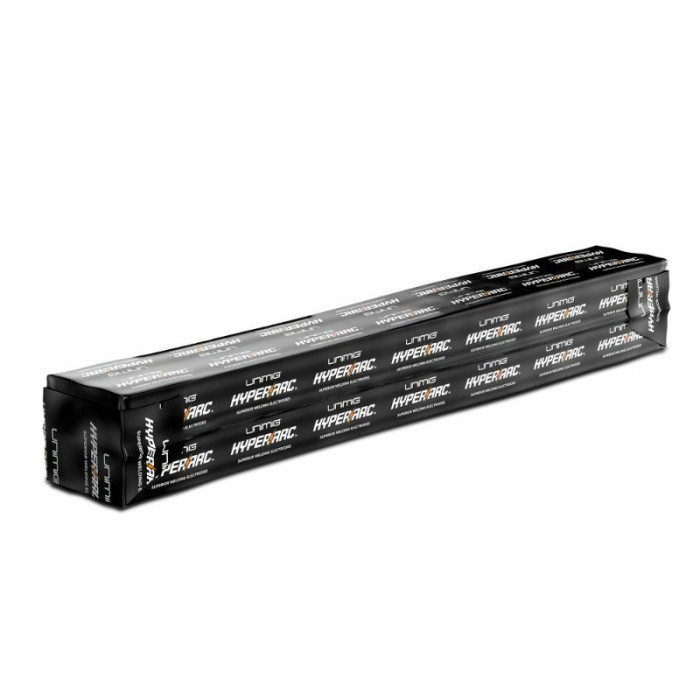

Electrodes Stainless Steel Hyperarc 316L 3.2mm - 2kg

UNIMIG U63024 Electrodes Stainless Steel Hyperarc 316L 3.2mm - 2kg

Features:

• Excellent arc stability
• High penetration
• Less spatter
• Concentrated arc
• Applications:
  • Stainless Steel fabrication
  • Welding 300 series stainless steels
  • Suitable to weld 301, 302, 303,304 and 304L

Classification:

• AS/NZS 4854: ES316L-16
• AWS/ASME SFA5.4: E316L-16

Specifications:

• Recommended Current - AC & DC+
• Mechanical Analysis -
  • Stainless Steel fabrication
  • Welding 300 series stainless steels
  • Suitable to weld 301, 302, 303,304 and 304L
• Operating Data -
  • Electrode Size - 3.2mm
  • Electrode Length - 350mm
  • Current Range - 70-110A
• Chemical Composition (%) -
  • C - 0.024%
  • Mn - 0.856%
  • Si - 0.84%
  • P - 0.037%
  • S - 0.012%
  • Ni - 11.4%
  • Cr - 18.2%
  • Mo - 2.46%
  • Cu - 0.2%
• Weight - 2kg
