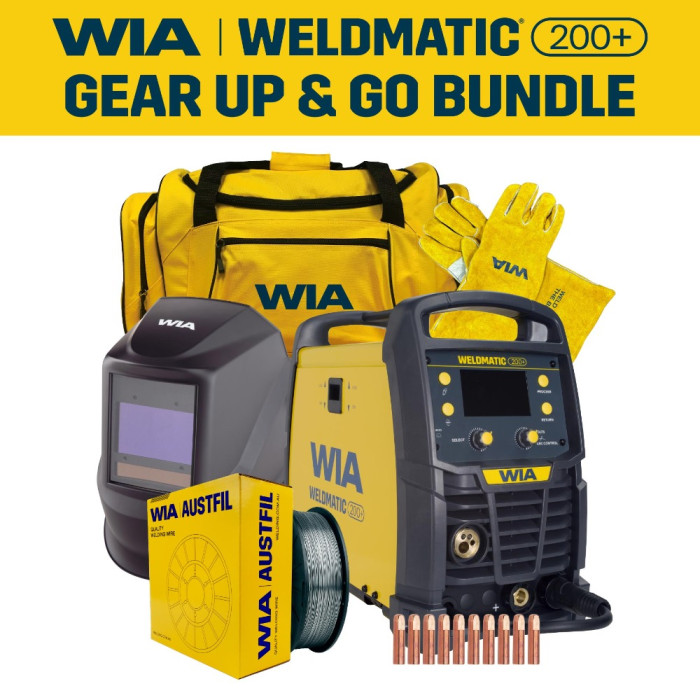

Weldmatic 200+ MIG / Stick / TIG Welder Bundle

WIA CP142-BUNDLE Weldmatic 200+ MIG / Stick / TIG Welder Bundle



Bundle Includes:

• WIA CP150 Weldmatic 200 MIG / Stick / TIG Welder
• WIA OpticFX Nero Welding Helmet
• Austfil T-11 0.9mm 5kg Spool of Wire
• Pair of MIG Welding Gloves
• Pack of 10 Contact Tips (PN: BE7489)
• WIA Duffle Bag

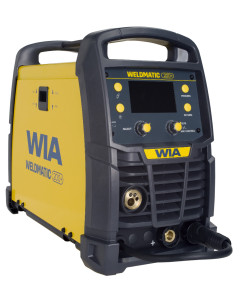

WIA CP142-1 Weldmatic 200+ MIG / Stick / TIG Welder Package

Built with quality components and manufactured with 3 years warranty, the Weldmatic 200+ delivers on reliability and performance making it the perfect portable choice for intermediate and professional welders.

Package Includes:

• Euro Gun Cable (3m)
• Work Lead (3m)
• Tips (0.6/0.8/0.9/1.2mm)
• ES6 Steel Sample Wire (0.8mm)
• Austfil T-11 Gasless Sample Wire (0.9mm)
• Drive Rollers 0.6/0.8mm V Groove; 0.9/1.2mm Knurled (Gasless)
• Gas Regulator
• Industrial Twist Lock Electrode Holder (3m)

Features:

• Suitable Applications - Light to Medium Fabrication, Repair and Maintenance, Automotive, Farming, Building and Construction.
• Weldable Materials - Steel, Aluminium and Stainless Steel
• 200 A single phase MIG, Stick & TIG welder
• 200 A at 24 V 15% Duty Cycle
• Portable – Only 17kg
• Integrated wire feeder – Makes it compact and lightweight
• LCD interface – Simple to navigate it offers quick and easy setup through pre-set parameters and memory selection
• Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
• Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
• Suitable wires - Gas-shielded and gasless flux-cored wires
• Spool capacity - Takes 1kg and 5kg spools
• VRD (Voltage Reduction Device)
• IP23S rated
• Generator compatible – 12 kVa

Specifications:

• Primary Voltage - 240 VAC-50/60Hz
• Rated Primary Current - 13.4 Amps
• Max Primary Current - 34.5 Amps
• Recommended Generator Power - 12 kVa
• Supply Plug - 15 Amp
• IP Rating - IP23S
• Weight - 17kg
• Standards Compliance - AS60974.1 & AS1674.2 (VRD)
• Warranty - 3 Years

MIG Specifications:

• Output Range - 40A/16V-200A/24V
• Rated Output @ 40°C (10min) -

  • 200A/24V @ 15%
  • 100A/19V @ 60%
  • 77A/17.9V @ 100%
• Wire Size Range - 0.6/0.8/0.9/1.2mm
• Material Thickness Range - Welds up to 8mm steel plate, single pass

Stick Specifications:

• Current Range - 10A/20.4-180A/27.2V
• Rated Output @ 40°C (10min) -

  • 180A/27.2V @ 15%
  • 90A/23.6V @ 60%
  • 70A/22.8V @ 100%

TIG Specifications:

• Current Range - 10A/10.4V-180A/17.2V
• Rated Output @ 40°C (10min) -

  • 180A/17.2V @ 15%
  • 90A/13.6V @ 60%
  • 70A/12.8V @ 100%



WIA SH300001 Welding Helmet OpticFX Nero

PROVIDES A FULL SPECTRUM OF COLOURS FOR A BETTER WELD

Features:

• Suits Stick, MIG, TIG & Plasma Cutting.
• Enhanced Optic Clarity - Allows the user to see a full spectrum of colours, providing a clearer, more detailed view of the weld.
• Intuitive Digital Controls - Simple design and large push buttons allow for easy mode/setting adjustments.
• Australian Standards - Tested in Australia, the lens and helmet comply with Australian Standards AS/NZS 1338.1 (Auto-Darkening) and AS/NZS 1337.1 B (High Impact).
• Operator Comfort - High quality headgear - fully adjustable, the headgear comes fitted with a large back cushion and an extra top band for better fit and comfort.
• Weighs only 555g
• Large Viewing Area - With a 100 x 60mm viewing area, the operator gets a better visual of the working area.
• Variable Shade Control - Variable control for adjustment of shade, lens sensitivity and delay for maximum control when welding. Shade 9-13.
• Magnifying Lens Holder - Built-in provision for magnifying lens*,if  required. *Magnifying lens not included.
• Grind Mode - Comes standard with Grind Mode, meaning you can use one helmet for all your welding requirements - including weld preparation and clean-up.
• Lens Delay Control - Used to adjust the time for the lens to switch to clear state after welding. Useful in eliminating bright rays present in high amp applications. Adjusts from 0.1 second-min to 0.9 second-max.
• 4 Arc Sensors - Provides continuous arc sensing capability. Lens automatically switches from light state 4 to adjustable welding shades 9-13 when an arc is struck. Lens darkening reaction time 1/12,500 sec.
• Sensitivity Control - Sensitivity control makes the lens more responsive to different light levels in various welding processes. Use mid-range (2-3) sensitivity setting for most applications.
• 3 Year Warranty - Like all WIA products, this product is manufactured with quality in mind. Tested under stringent conditions, we provide a 3 year warranty for your peace of mind.



WIA AUST11095KG Austfil T-11 Self-shielded Flux Cored Wire - 0.9mm - 5kg Spool

The Austfil T-11 is suitable for welding of mild and galvanized steels, gates, frames, sheds, light structures and general fabrication.

Classification:

• AS/NZS ISO 17632-B - T49ZT11-1NA-H15
• AWS A5.20: E71T-11

Features:

• Self-Shielded Flux Cored Wire
• All Positional Welding
• Single Pass / Multi Pass Applications
• Full Slag Covering and Easy Slag Removal
• Shielding Gas not required

Specifications:

• Operational data:
  • Wire Size (MM) - 0.9mm
  • Welding Current Range (A) - 80 - 150A
  • Arc Voltage Range* (V) - 15 - 18V
    • *Welding Current DC - Voltage is determined by arc current and wire arc length. Welding currents and voltage shown are operational guides only
• Typical All Weld Metal Chemical Analysis:
  • C - 0.06
  • Mn - 0.60
  • Si - 0.05
  • S - 0.008
  • P - 0.012
  • Al - 1.22
• Typical All Weld Metal Mechanical Analysis

  • Yield Strength - 430 Mpa
  • Tensile Strength - 530 Mpa
  • Elongation - 24%
